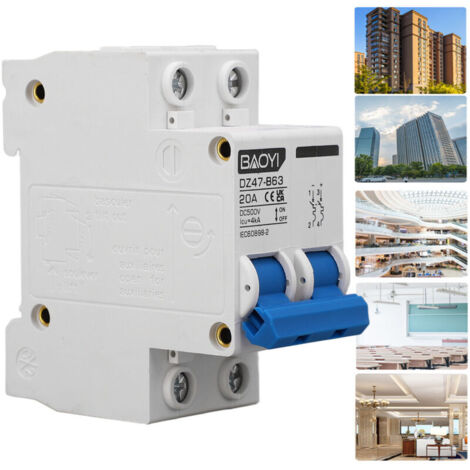

Miniature DC 2P Type B Circuit Breaker, DIN Rail Mounting, Multiple Functions, Mini Safety Circuit Breaker for Solar PV Systems, DC500V 20A
You may also like
Compare with similar items
Product information
Description
1. Multiple Functions: The DC circuit breaker protects electrical equipment from overloads and short circuits, and can also control and isolate circuits, making it very convenient.
2. 4KA Breaking Capacity: The rated ultimate short-circuit breaking capacity is 4000A, the rated current is 20A, and the rated voltage is 500V DC.
3. High Sensitivity: Integrated electromagnetic system, which trips immediately in case of a short circuit, ensures circuit safety.
4. Wide Application: The 2P DC circuit breaker can be used for DC power systems, ship power systems, photovoltaic solar systems, and other DC systems.
5. DIN rail installation: The miniature DC circuit breaker is designed modularly and adopts a 35mm DIN rail mounting system, allowing for quick and easy installation. Specification: Item Type: 2P DC Circuit Breaker Material: PA66 Model: DZ47 B63 Rated Current: 20A Rated Voltage: 500V DC Ultimate Short-Circuit Breaking Capacity (Domestic Icn): 4000A Applications: Solar photovoltaic, electric motorcycle, electric vehicle Mechanical Life: 20,000 cycles Applicable Temperature: -35°C at +70?
Feature: Type B (more sensitive than type C circuit breaker)
Package list:
1 2P DC circuit breaker
Features
- BrandTEHTUY
- Amperage20 A
- Pcs per pack1
- Tripping curveB
- Circuit breaker functionTwo pole
- Height10 mm
- Width10 mm
- MaterialPolyamide
- Number of modules1
- Voltage500 V
- Connector typeTwo pole
- Circuit breaker typeBreaker switch
- Connection port typeAudio
- ManoMano ReferenceME99037681
- MMID465162141605
- Product codemano-HWLX-10441
- EAN6282768395121
