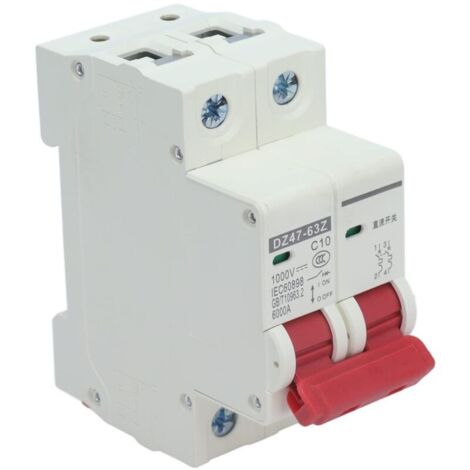

Miniature DC Circuit Breaker, 2 Poles, 35mm Insulation Protection, DIN Rail Mounting for DC Power Supply Systems
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Functions - Used to protect power distribution installations against overloads and short circuits; can also be used for control and isolation. Fast tripping - The electromagnetic tripping system can trip immediately in case of a short circuit to protect circuit safety. 35 mm DIN rail mounting - Modular construction, screw clamp, 35 mm DIN rail mounting. Easy to install, convenient and practical. Assists arc extinction: DC arc extinction is more difficult than AC arc extinction. The DC circuit breaker has a magnetic system to aid arc extinction.
Application--Used in DC power systems, marine power systems, solar photovoltaic systems, or any other DC system.
1. Unpack and remove the product.
2. Install the circuit breaker in the distribution box.
3. Install the wires for the circuit breaker.
Specification:
Item Type: DC Circuit Breaker
Model: DZ47-63Z
Material: PA66
Current rated: 10A
Rated voltage: 1000VDC
Rated limit short circuit breaking capacity (mnage Icn): 6000A
Package list:
1 x DC circuit breaker
Application--Used in DC power systems, marine power systems, solar photovoltaic systems, or any other DC system.
Miniature DC Circuit Breaker 2 Poles Insulation Protection Leakage Protection Switch Electrical System Switches DIN Rail Mounting Electromagnetic Tripping System Disconnect Lines
How to Use:1. Unpack and remove the product.
2. Install the circuit breaker in the distribution box.
3. Install the wires for the circuit breaker.
Specification:
Item Type: DC Circuit Breaker
Model: DZ47-63Z
Material: PA66
Current rated: 10A
Rated voltage: 1000VDC
Rated limit short circuit breaking capacity (mnage Icn): 6000A
Package list:
1 x DC circuit breaker
Features
- BrandTEHTUY
- Amperage1 A
- Pcs per pack1
- Circuit breaker functionTwo pole
- Height10 mm
- Width10 mm
- MaterialPolyamide
- Number of modules1
- Number of terminals2
- Weight1 g
- ManoMano ReferenceME99037946
- MMID374850530754
- Product codemano-HWLX-10210
- EAN6282768394254
