Moore & Wright CSM300 CSM300 Precision Combination Set 300mm MAWCSM300

Name: Moore & Wright CSM300 CSM300 Precision Combination Set 300mm MAWCSM300
Brand: TBC
SKU: MAWCSM300
Price: 259.99 GBP
Availability: InStock

Sold by GravaHaus and 3 other sellers

Product information

Description

General description

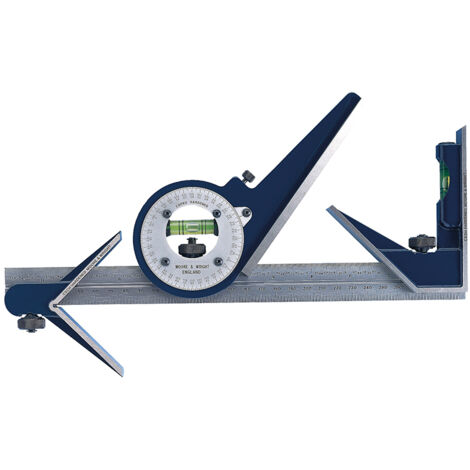

The Moore & Wright CSM300 Precision Combination Set is a comprehensive toolset designed for precision measurement and layout tasks. It includes a 300mm rule graduated on both sides, a protractor head, a square head, and a centre head, making it ideal for various applications in woodworking, metalworking, and other DIY projects.

Technical specifications

Rule length: 300mm

Graduation: mm and 0.5mm on both sides

Numbering: every 10mm

Fixed angles of Square Head: 15°, 30°, 45°, 60°, 75°, and 90°

Centre Head fixed angle: 90° for finding the centre of round bar stock up to 120mm diameter

Other information

The datum faces are fully hardened and ground to resist wear.

The protractor features a centrally mounted vial for unrestricted viewing and a full 360° scale plate graduated from 0° to 180°.

The precision rules are fully hardened and tempered with deeply etched graduations for ease of reading and durability.

Includes a unique rule clamp for positive location and clamping.

Compatible rules: MAWCSRM600 & MAWCSRME24 are specifically designed for use with the Combination Sets (MAWCSM300 & MAWCSME12).

Features

Brand
TBC
Length
30 cm
Warranty
1 year(s)
Material
Metal
Colour
Blue
Width
32 cm
Weight
1450 g
Ruler type
Precision
Graduation unit(s)
mm
ManoMano Reference
ME1391867
MMID
225087876677
Product code
MAWCSM300
EAN
5051102012649
