Mophorn 12V Linear Actuator, 7.84-Inch Stroke, 2023lbs/9000N Load Capacity, IP65-Rated, 0.2"/s Speed with Mounting Brackets for Industrial Equipment and Heavy Lifting Applications

Electric Linear Actuator

Precise Stroke Customization and Seamless Motion Management

This ultra heavy-duty linear actuator is designed to deliver a powerful torque of 2023 lbs, offering reliable performance with an IP65-rated protective design. It ensures smooth and consistent motion at a speed of 0.19"/s, making it an excellent choice for industrial automation, heavy lifting systems, mechanical devices, and transportation applications.

• Heavy-Duty Thrust for Industrial Applications




• Durable IP65-Rated Protection




• Suitable for a Wide Range of Uses




• Designed to Handle Demanding Tasks




• Essential Specifications






Key Features

• Industrial-Grade Power: This 12V ultra heavy-duty linear actuator provides a robust thrust of 2023 lbs (9000N), making it suitable for challenging environments and heavy-duty applications such as industrial automation, lifting mechanisms, and mechanical systems.

• IP65-Rated Durability: Designed with an IP65 protection rating, this 12V linear actuator resists dust and water, making it ideal for outdoor applications. (To ensure a longer service life, avoid extended exposure to outdoor conditions.)

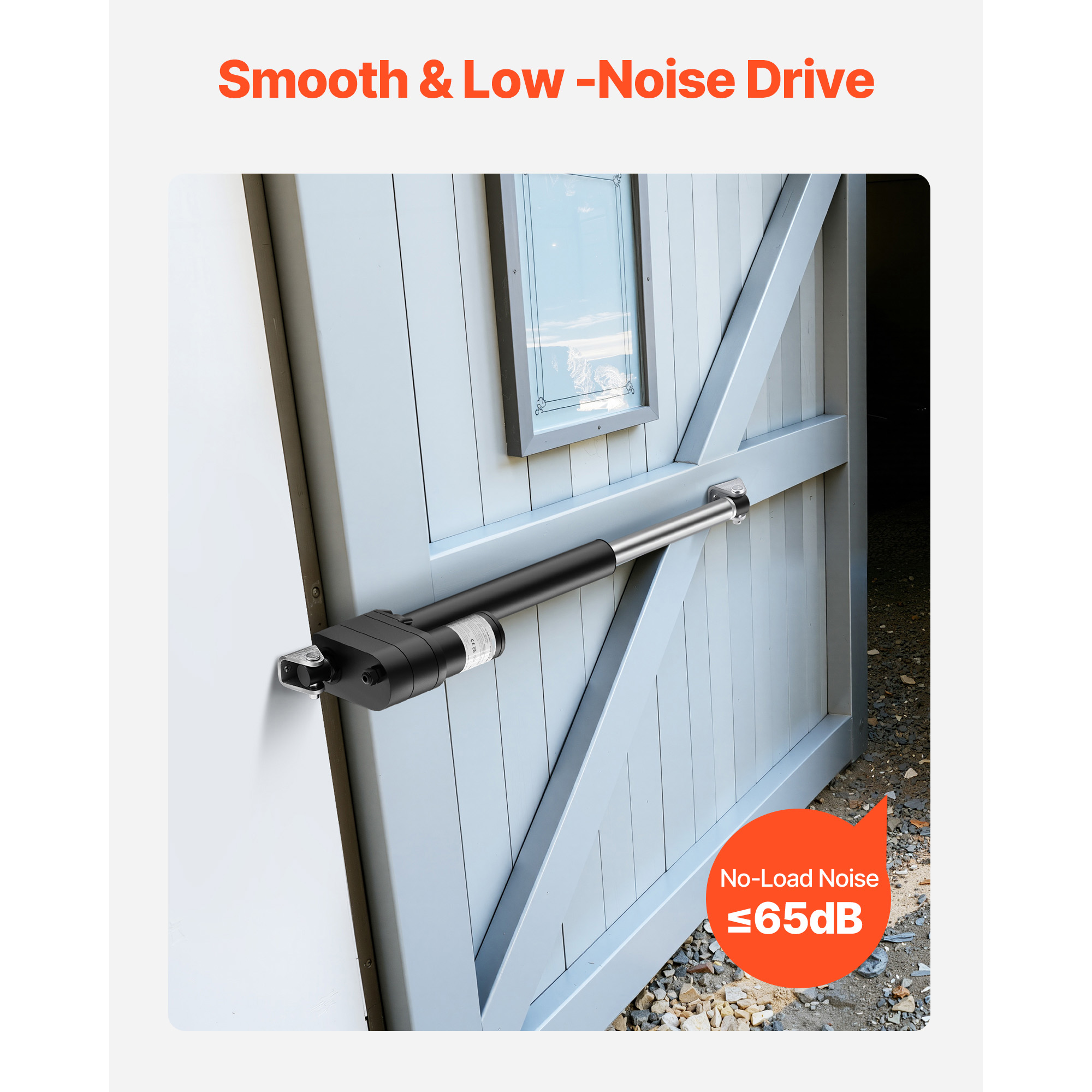

• Wide Range of Uses: With a no-load noise level under 65 dB, this robust linear actuator is perfect for applications such as barn doors, robotic arm movement, heavy machinery, marine equipment, transportation systems, lifting platforms, industrial automation, and other high-load operations.

• Designed for Tough Applications: Constructed with a sturdy aluminum alloy casing and enhanced sealing, this linear motion actuator offers exceptional durability and resistance to corrosion, making it ideal for managing substantial loads in industrial environments, warehouses, and manufacturing facilities.

• Specifications Overview: Movement Speed: 0.2 inches per second (5 mm/s); Stroke Distance: 7.87 inches (200 mm); Fully Extended Length: 25.67 inches (652 mm); Collapsed Length: 17.8 inches (452 mm); Power Consumption: 20 Amps; Operating Voltage: 12V DC

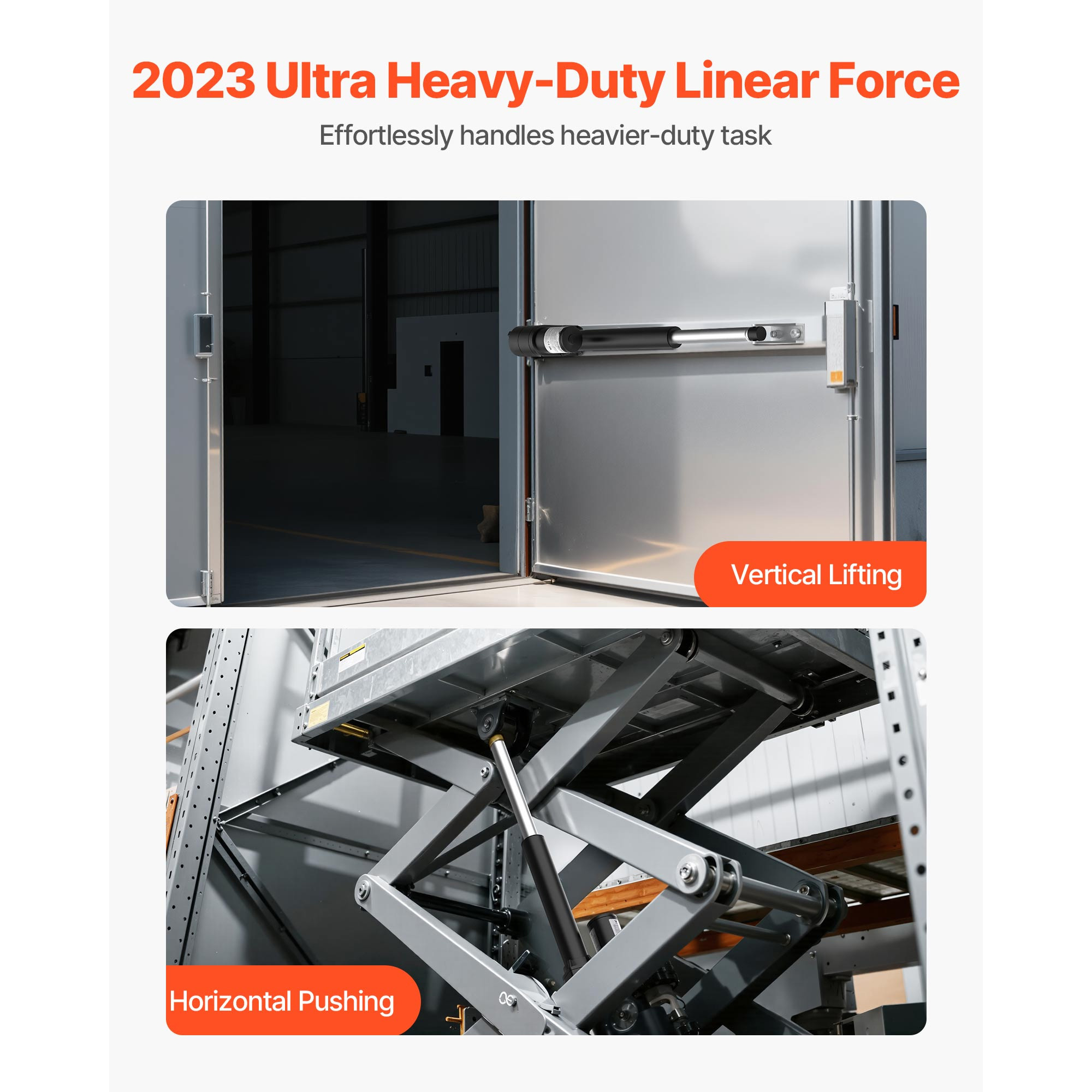

Robust Linear Motion Capability

This 12V heavy-duty linear actuator delivers a robust vertical lifting capacity of 2023 lbs and strong horizontal pushing force, making it ideal for efficiently and precisely managing various demanding tasks.

  

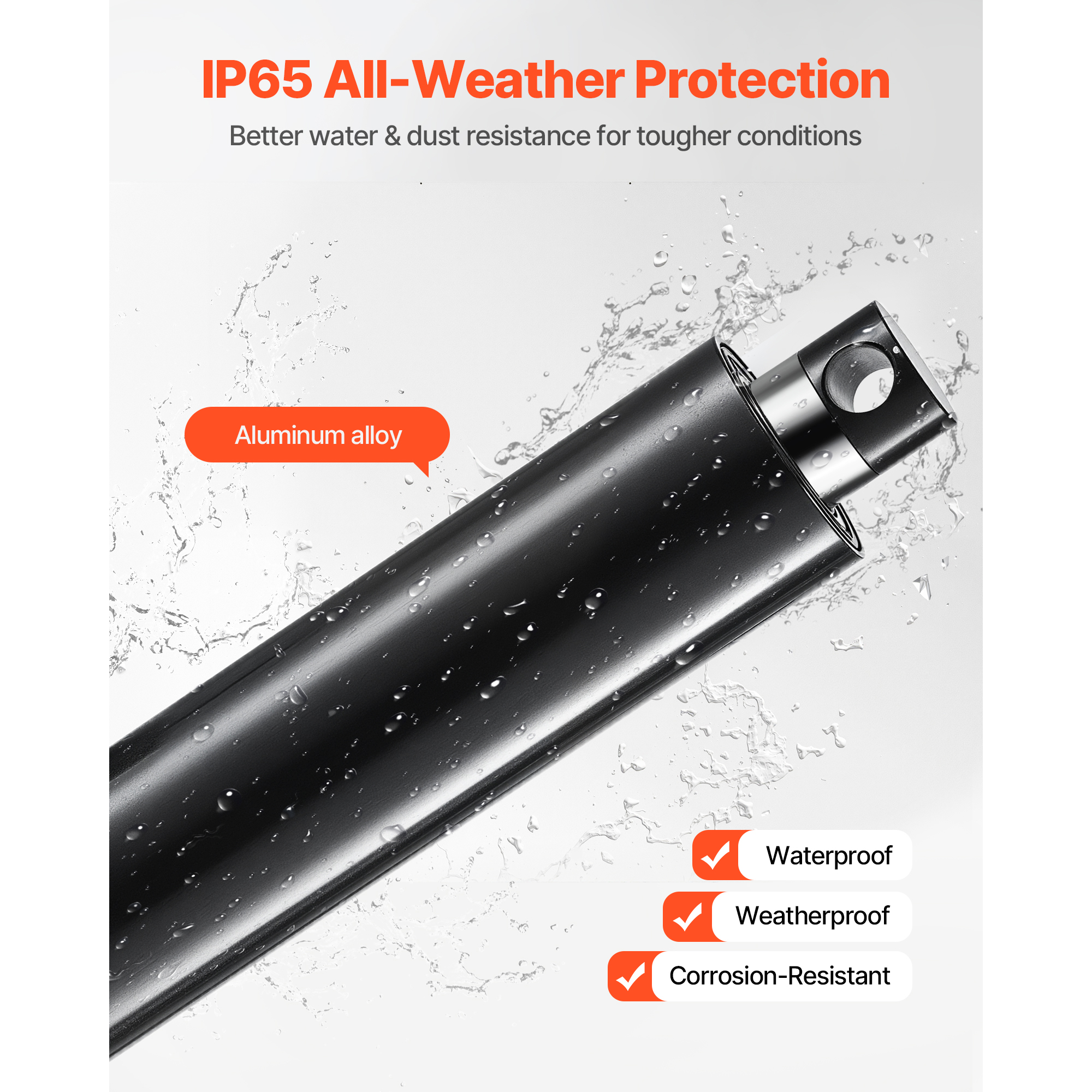

Designed with IP65-rated protection, this product offers reliable resistance against dust and water, making it suitable for various environments and ensuring long-lasting performance.

This 12V linear actuator is designed with an IP65 protection rating, offering resistance to dust and water for dependable performance in both indoor and outdoor environments. (Note: To maintain durability, extended exposure to outdoor conditions is not advised)

  

Effortless Setup

To achieve precise movement control, it is recommended to pair the linear actuator with a compatible controller. Please note that this product includes only the push rod, and any additional components required for installation must be obtained separately.

.

  

Item Measurements

The product dimensions are clearly outlined for your convenience, helping you choose the most suitable option. Stroke Length: 7.87 inches (200 mm); Fully Extended Length: 25.67 inches (652 mm); Fully Retracted Length: 17.8 inches (452 mm).

  

Premium Build & Long-Lasting Durability

Designed with care and constructed from durable materials, this stroke linear actuator is built to provide long-lasting performance.

  

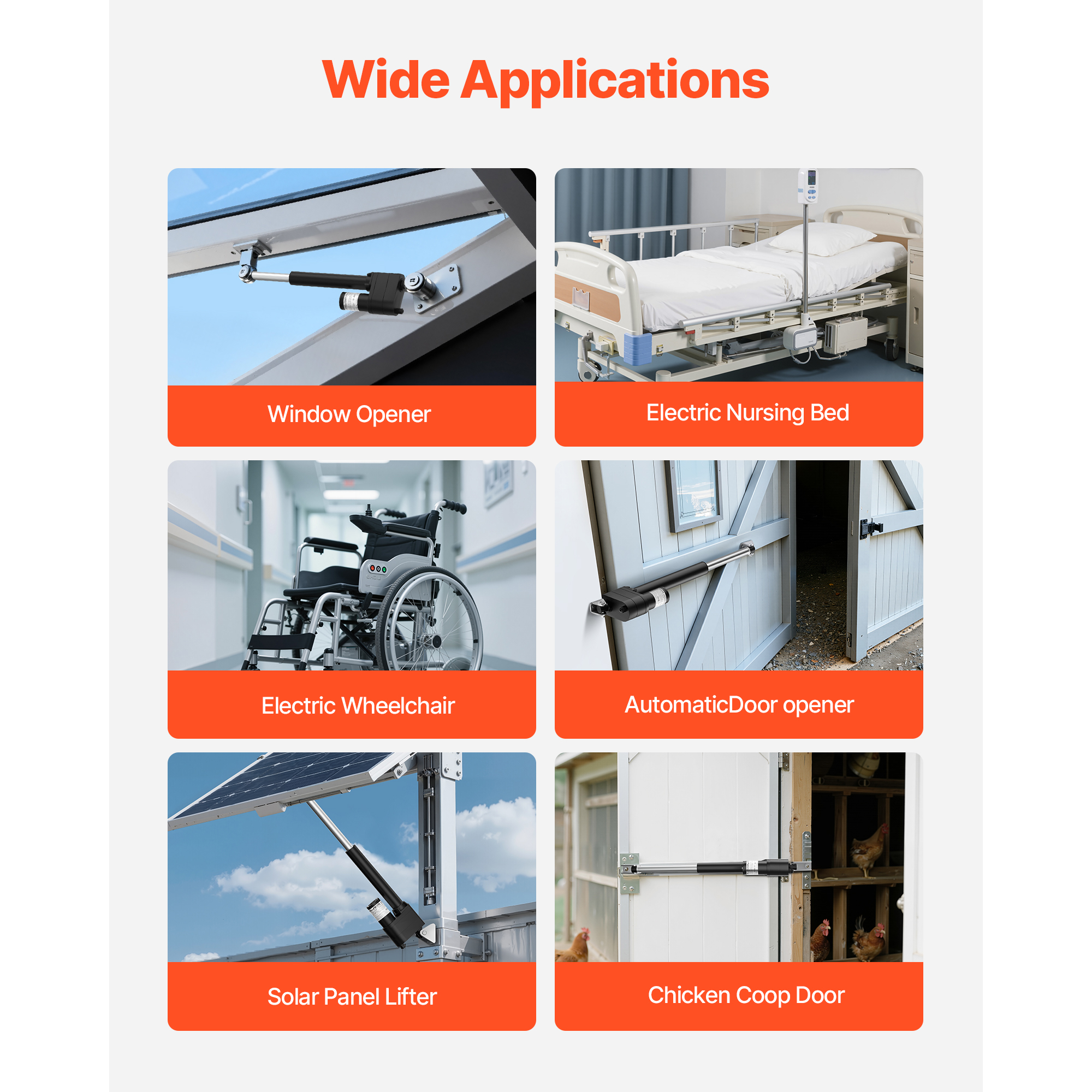

Versatile Applications

This 12V linear actuator seamlessly adapts to various applications, such as barn doors, heavy robotic arm movements, industrial machinery, marine equipment, transportation systems, and more.

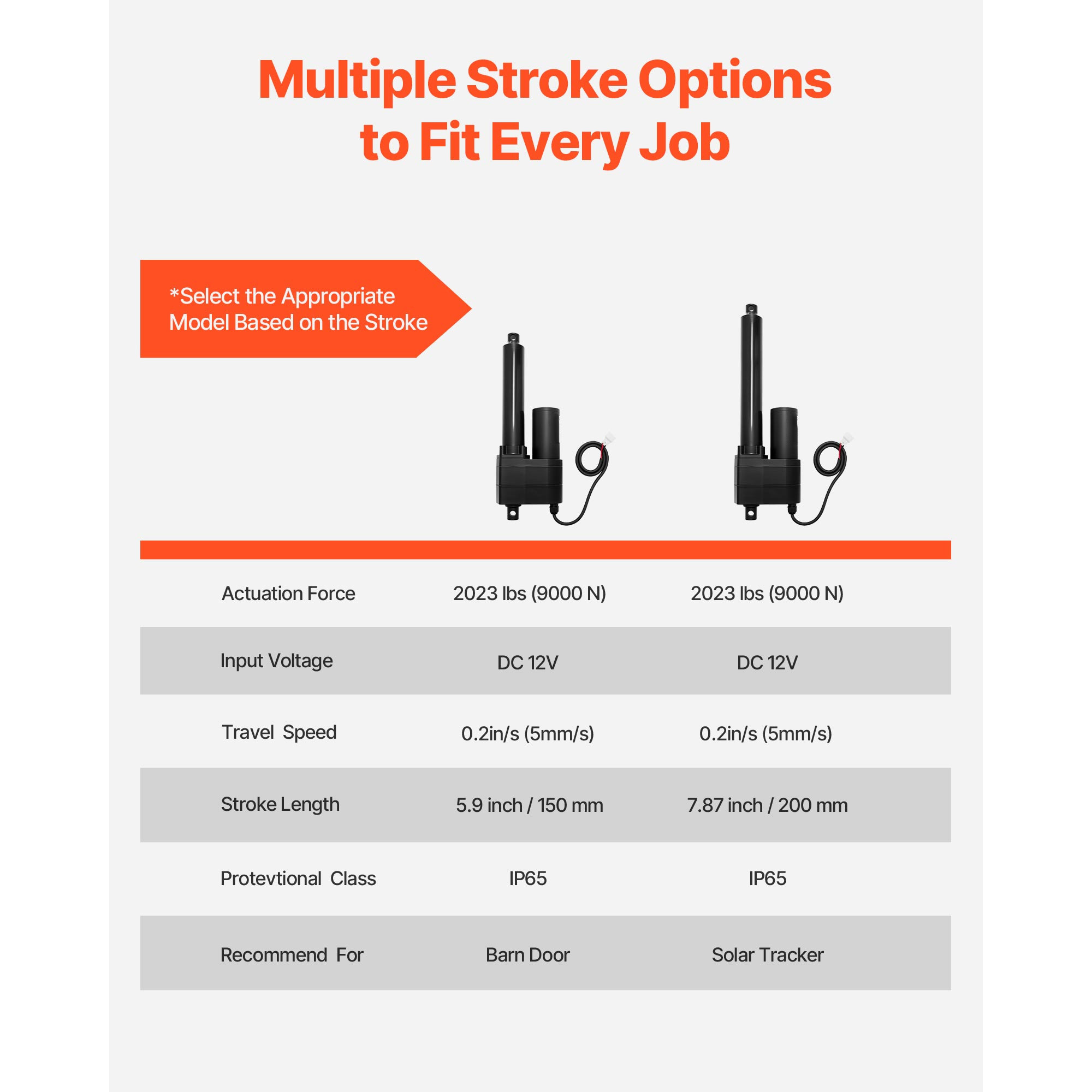

Specification

• Item Model Number: OK648-A

• Input Voltage: DC 12V

• Maximum Load / Thrust: 9000N (2023 lbs)

• Travel Speed: 0.2 inch/s (5 mm/s)

• Stroke Length: 7.87 inch / 200 mm

• Extended Length: 25.67 inch / 652 mm

• Retracted Length: 17.8 inch / 452 mm

• IP Rating: IP65

• Main Material: Aluminum Alloy

• Net Weight: 12.6 lbs / 5.719 kg

• Product Dimensions: 18.7 x 5.9 x 3.0 in / 475 x 150 x 75 mm

  

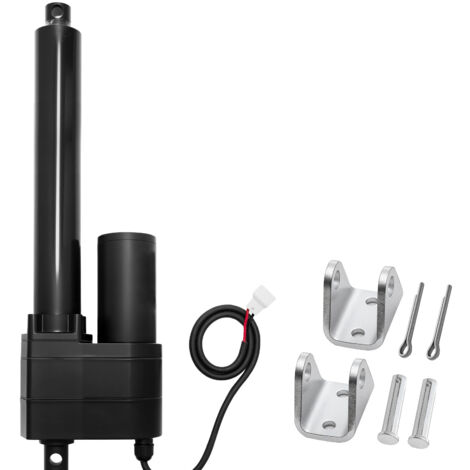

Package Content

• 2 x Mounting Brackets
