VEVOR Heat Exchanger Water to Air, 18"x 20" with 3-Row 3/8" Copper Ports, 242 Aluminum Fins Heat Exchanger for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating

Unleashing Ultimate Heat Efficiency

Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

• High-Quality Materials
• Efficient Heat Transfer
• Large Heat Exchange Area
• Tight and Leak-Proof

Unleashing Ultimate Heat Efficiency

Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

Key Features

• High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. CE certified for reliable quality.
• Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.

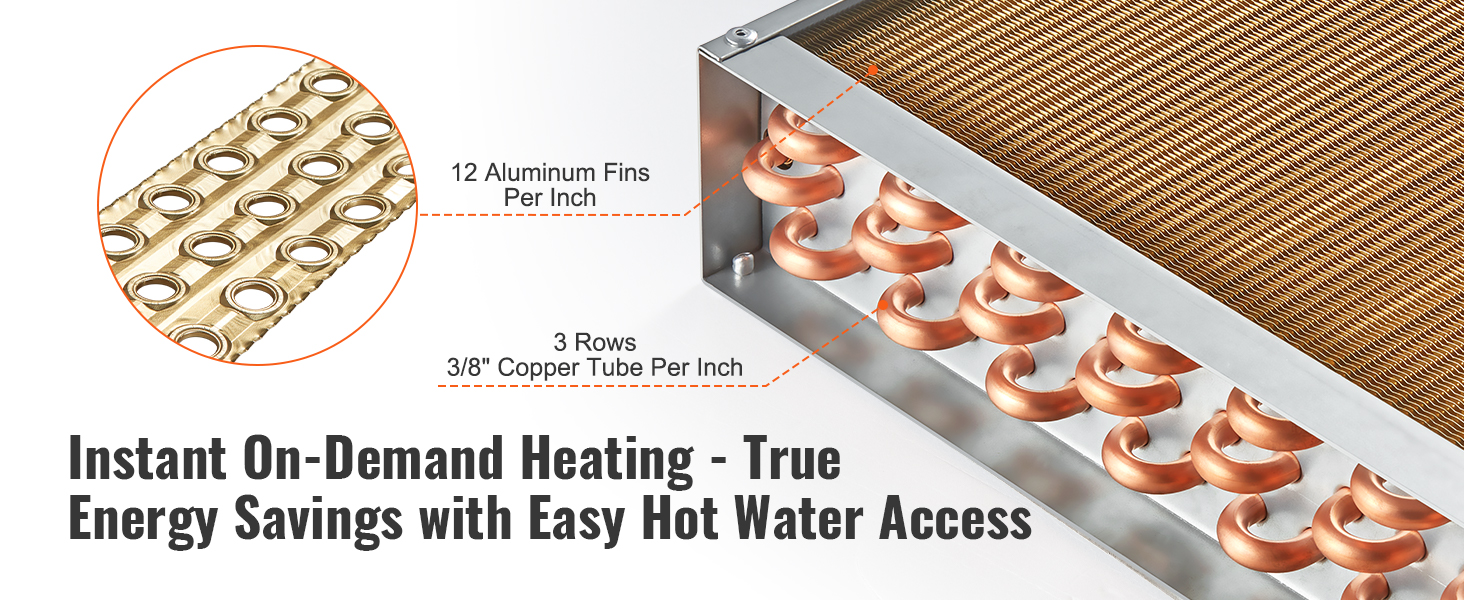

• Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.
• Large Heat Exchange Area: With an effective heat exchange area of 18”x20” and 242 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.
• Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.

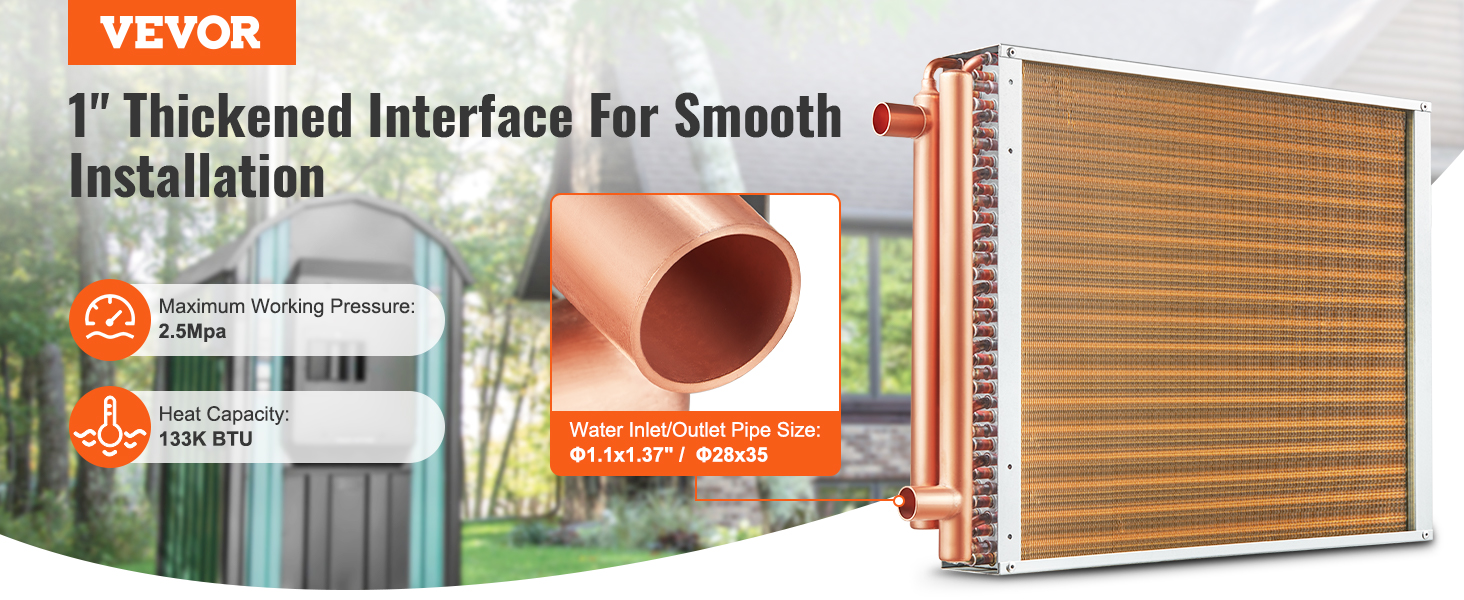

Our heat exchanger features a thickened interface with smooth threads for easy and convenient connection.

This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.

The heat exchanger has 2 interfaces, suitable for operating temperatures of -40-356℉/-40-180°C, with the outlet positioned above the inlet.

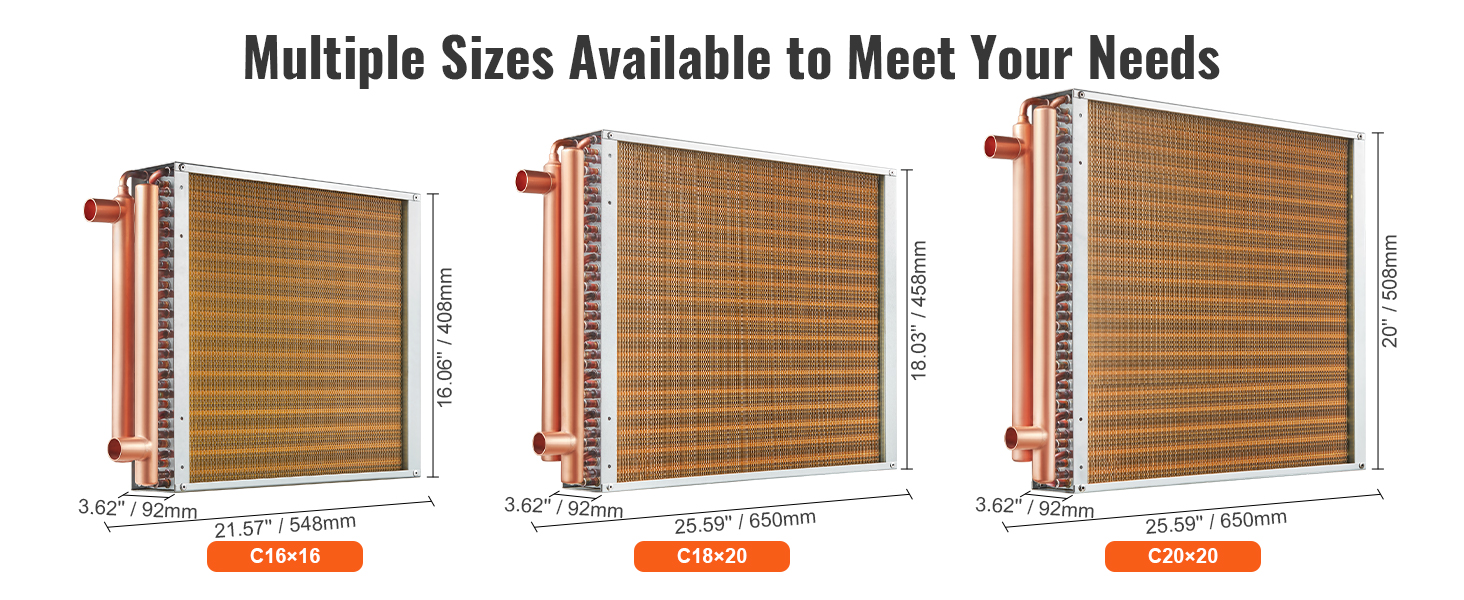

Our heat exchanger comes in 3 different sizes to meet your needs.

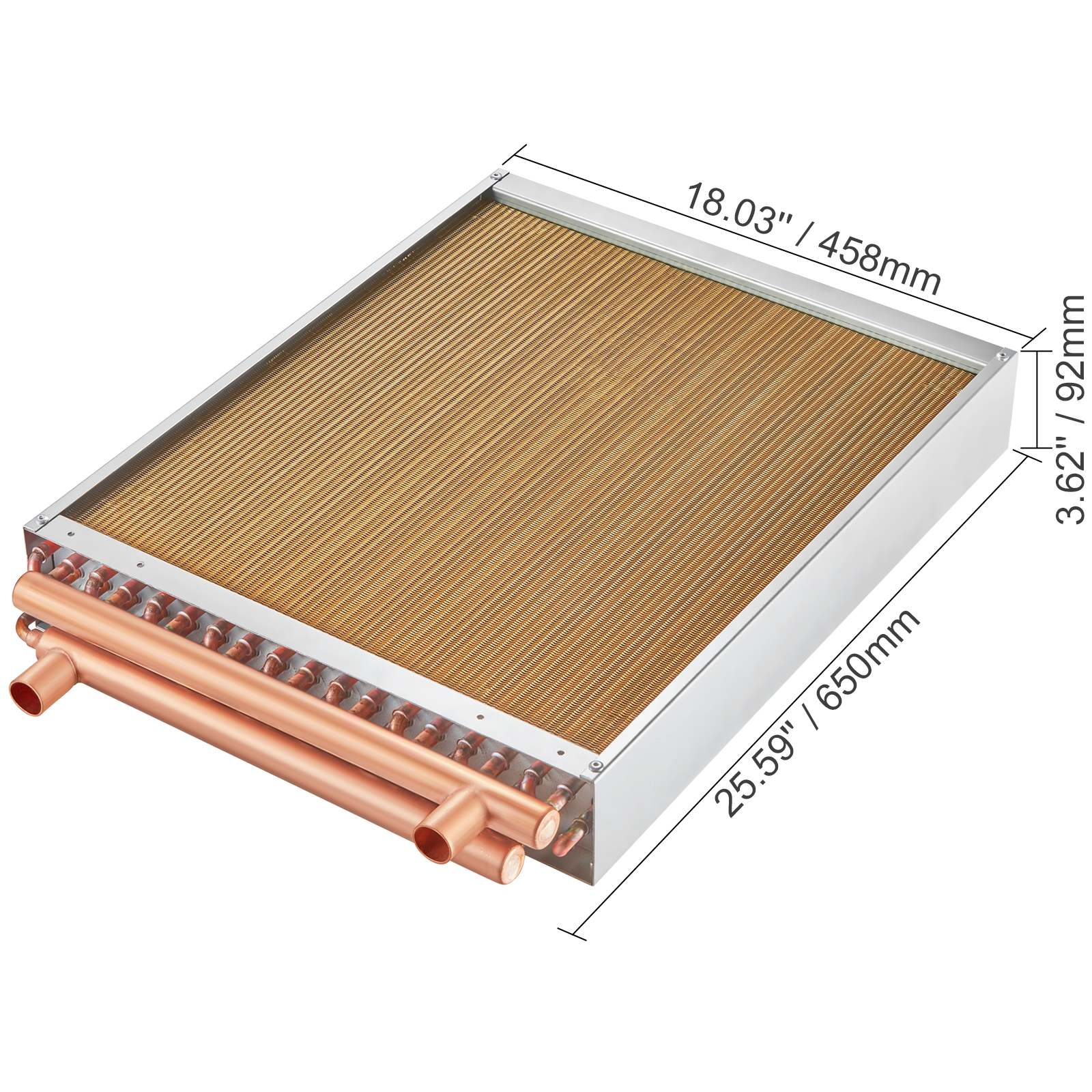

	Specification Model: C18×20 Heat Capacity: ≥133K BTU Plate Area: 18 x 20 in / 45.72 x 50.8 cm Number of Copper Tubes: 3-Row 3/8" Number of Aluminum Fins: 242 Pcs Maximum Working Pressure: 2.5MPa Operating Temperature: -40°C-180°C / -40°F -356°F Color: Gold Main Materials: Copper Net Weight (with Accessories): 17.64lb / 8kg Product Dimensions (L x W x H): 25.59x18.03x3.62" / 650x458x92 mm
	Package Content Heat Exchanger x 1
