General description

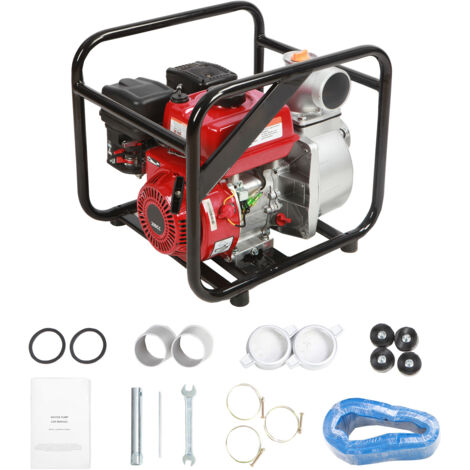

Discover seamless irrigation and efficient drainage with the Mophorn Gasoline Engine Water Pump. Featuring a robust 4-stroke air-cooled engine, this pump effortlessly tackles any job, delivering impressive performance for large-scale irrigation projects. With the capability to pump water over extended distances using a 25 ft outlet hose and filter screen, it’s designed for both convenience and reliability.Technical specifications
- Product Size (L x W x H): 505 x 410 x 430 mm / 20 x 16.1 x 16.9 in
- Product Weight: 29.3 kg / 64.6 lbs
- Max Lift: 43 m / 142 ft
- Max Suction: 7 m / 22 ft
- Max Flow: 265 GPM
- Inlet/Outlet Diameter: 80 mm / 3 in
- Horse Power: 7 HP
- Impeller Material: Cast Iron
- Gasoline Type: Unleaded Gasoline
- Fuel Tank Capacity: 3 L / 0.8 gal
- Machine Oil Tank Capacity: 0.5 L / 0.13 gal
- Hose Length: 7.6 m / 25 ft
- Working Water Temperature: -5℃ to +40℃ / 23℉ to 104℉
Compatibility and accessories
- 1 x Water Pump
- 1 x 25 ft Outlet Hose
- 1 x Inlet Filter Screen
- 1 x Force Rod
- 1 x Spark Plug Socket
- 1 x Wrench Pressure Cap
- 3 x Clamps
- 2 x NPT Pipe Joints
- 2 x Sealing Rings
- 4 x Shock Pads
Installation
- Before using, add water through the inlet to submerge the impeller.
Usage
- Ideal for irrigation, drainage, pool water exchange, and more.
- It uses unleaded gasoline, with a 3L max fuel capacity and 0.5L oil volume.
Other information
A plastic filter screen at the end of the water inlet hose prevents debris from entering the pump body during operation, prolonging its lifespan.
