VEVOR Slip Clutch, 1 3/8” PTO Slip Clutch, Smooth Round Ends PTO Friction Clutch, Carburized Steel Tractor Slip Clutch, Adjustable Rotary Cutter Slip Clutch, Black Brush Hog Slip Clutch for PTO Shaft

1 3/8" Round PTO Slip Clutch

This smooth PTO slip clutch is built by 20CrMnTi steel features 1-3/8" round male/ female shaft ends with locking conical pin. It stands out with easily adjustable tension springs, replaceable friction discs and comes with two fictional discs for replacement and with the torque setting chart for your guidance.

• Quality PTO Slip Clutch
• 1 3/8" Round Shaft Ends
• Adjustable Torque Setting
• Replaceable Friction Disc

Key Features

• 【QUALITY PTO SLIP CLUTCH】- The tractor PTO slip clutch is made of advanced 20CrMnTi carburized steel, which has high durability and impacts resistance properties. The black-painted surface is smoothing and anti-weary. Thus, it can withstand higher torque and speed to gain better protection for your PTO shaft.

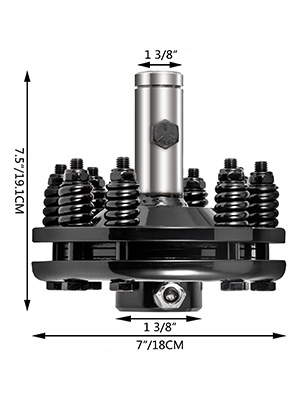

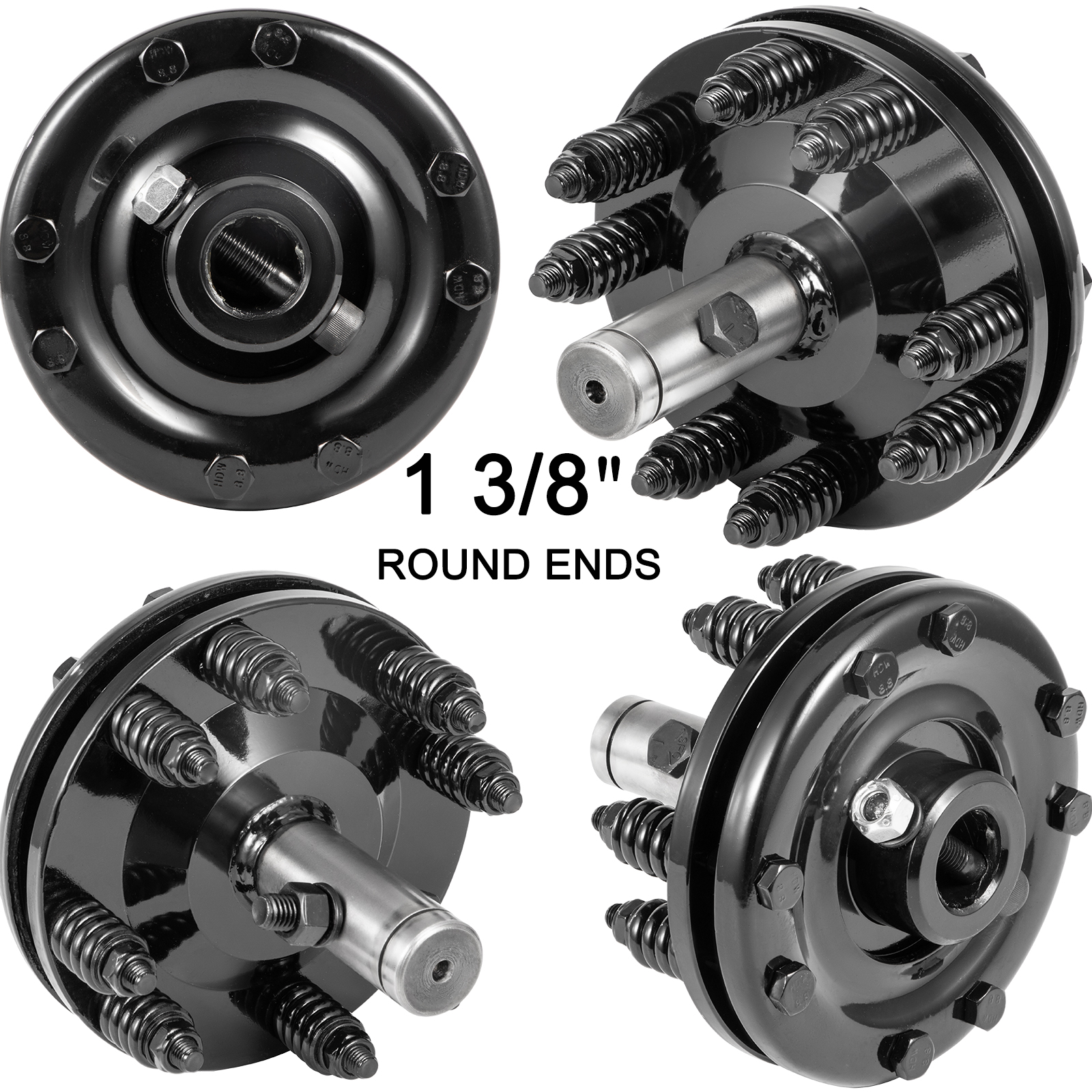

• 【1 3/8" ROUND SHAFT ENDS】- Constructed in round smooth ends, this PTO shaft slip clutch has a size of 1 3/8" for both male and female ends. It fits the PTO slip shaft, matching perfectly with the same diameter of your implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts.

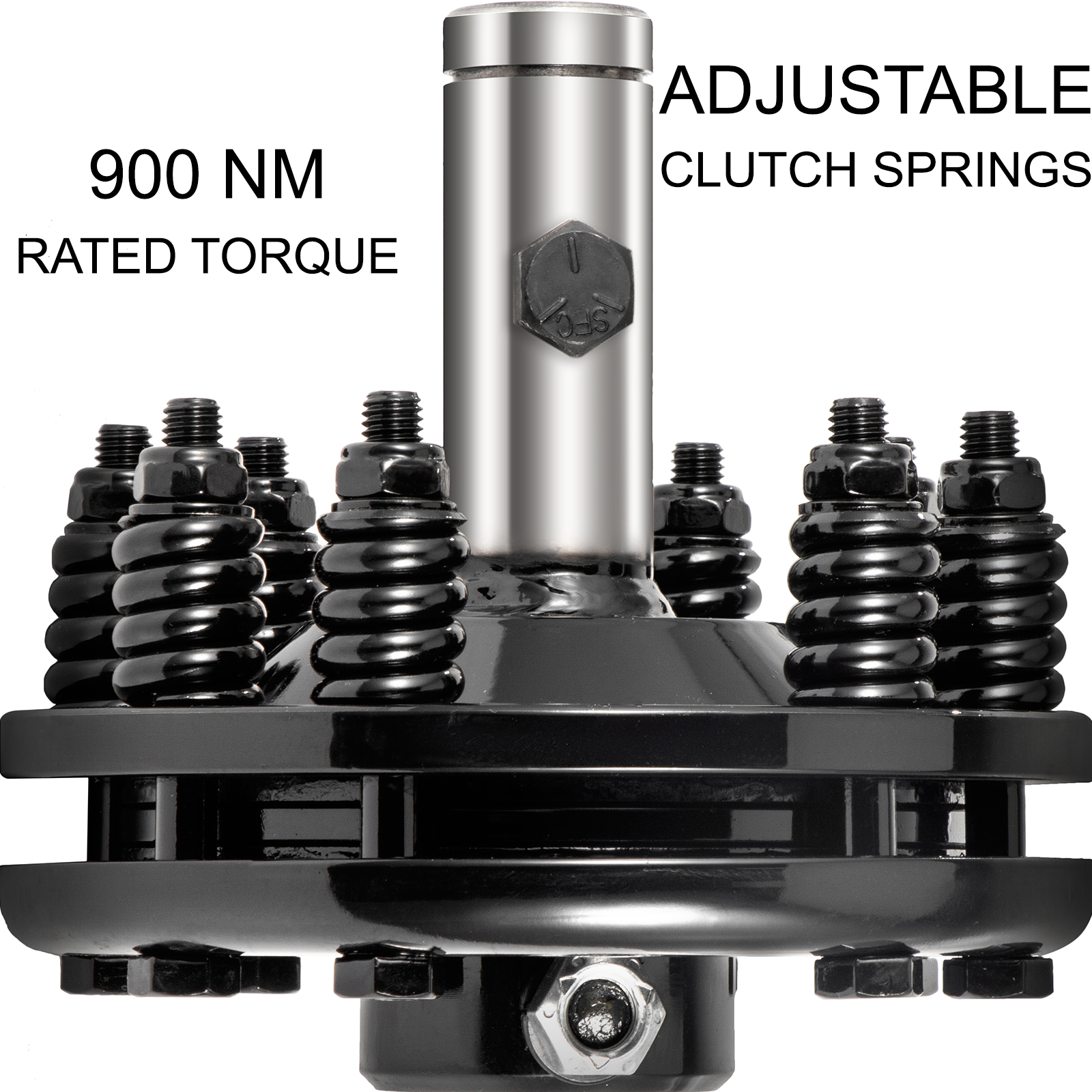

• 【ADJUSTABLE TORQUE SETTING】- With rated torque 900 nm, adjustment range: 20 - 55 hp, you can adjust the overall length of the tension springs to set an appropriate torque for your rotary cutter slip clutch. Just follow the instruction to tight/loose the eight nuts by 1/4 of a turn and check its tightness for correct operation.

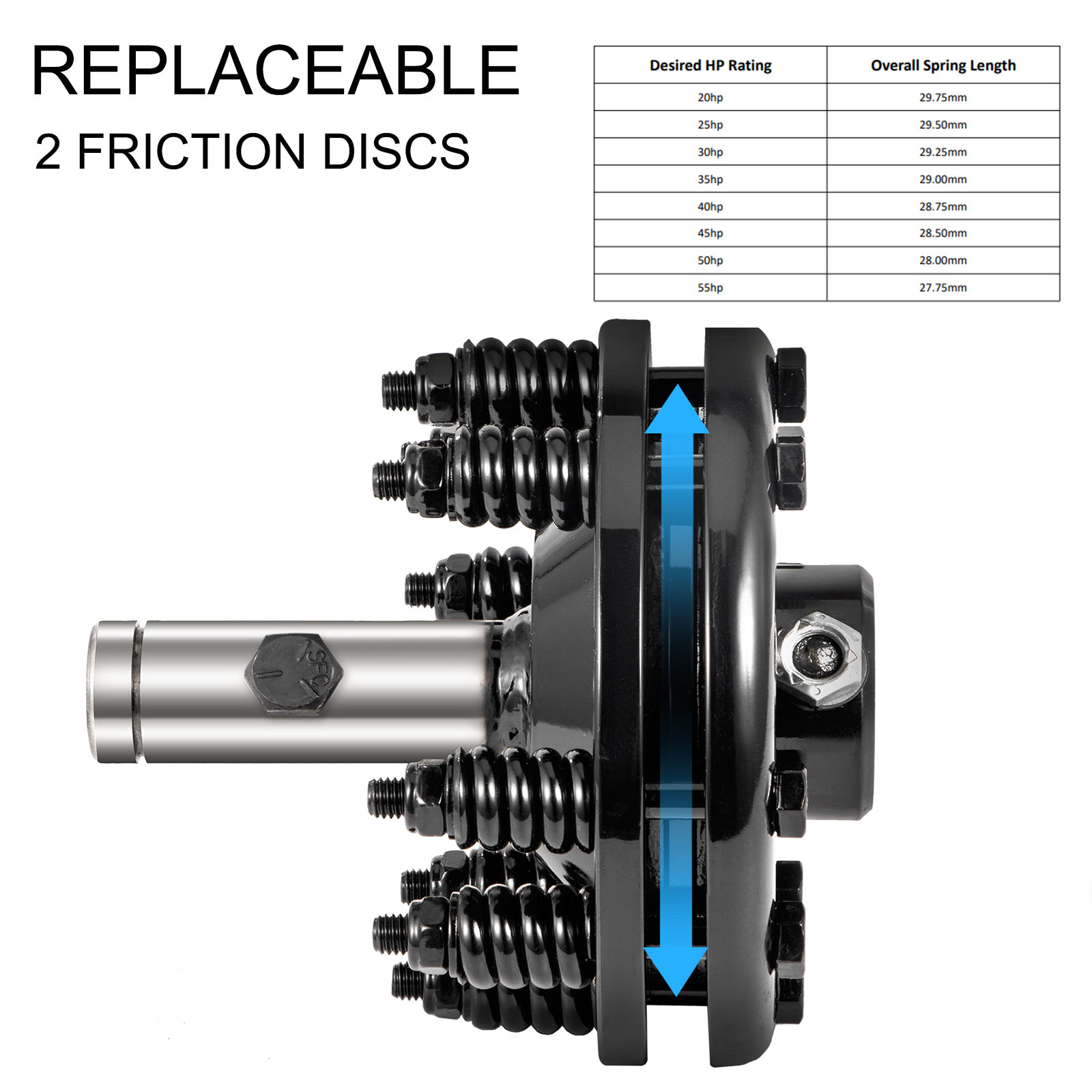

• 【REPLACEABLE FRICTION DISC】- The PTO friction clutch adopts an essential spring and disc set up, assembled with fiction discs inside to help transmit forces, allowing two sides of the PTO shaft to spin at different speeds. Considering long-lasting usage, we offer two additional discs for your replacement.
• 【WIDE RANGE APPLICATION】- Adding a slip clutch for PTO is meant for protection. It works as an extra safety line with PTO driven machinery on your tractor to prevent further damage moving up the line, and it is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors.

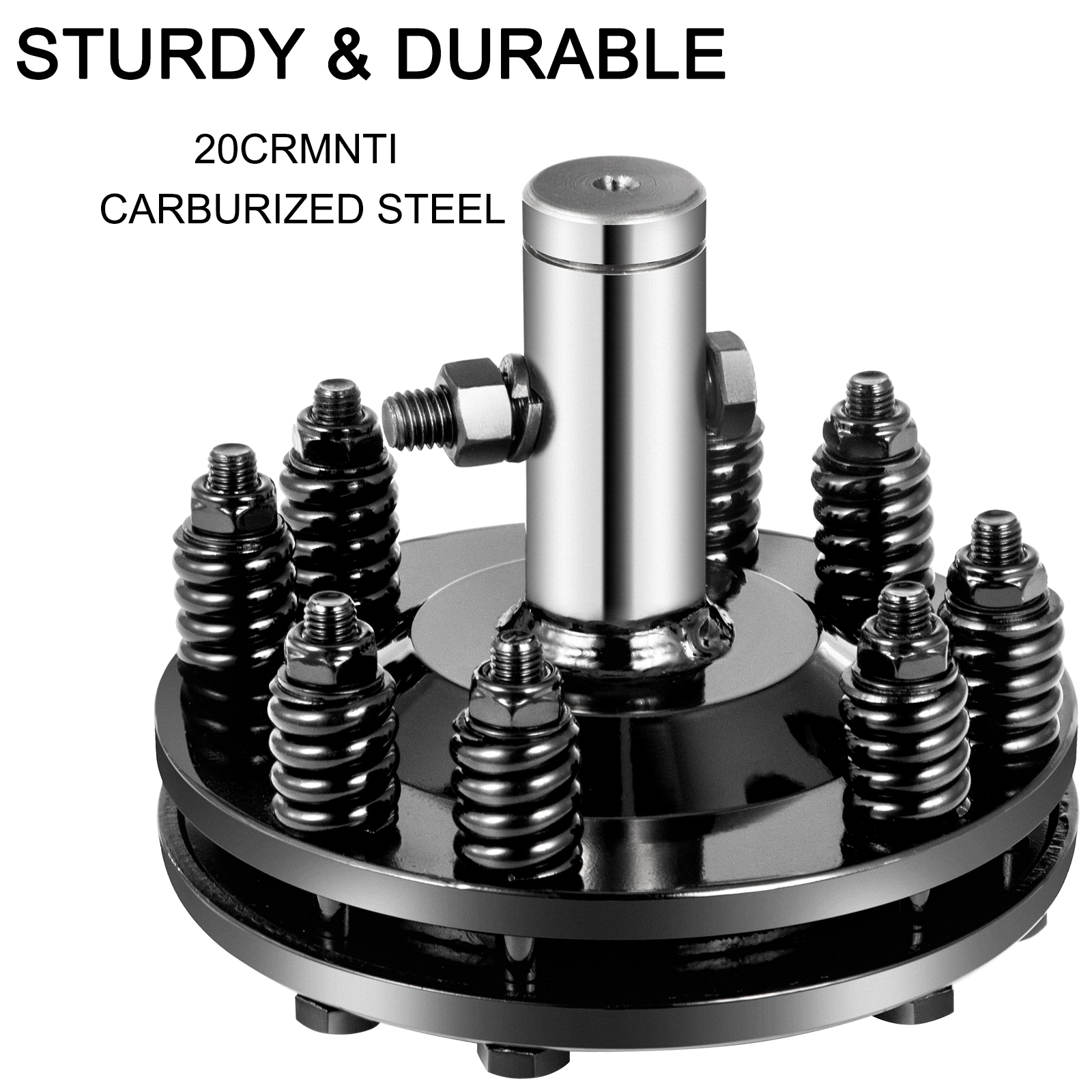

	20CrMnTi Carburized Steel This PTO overrunning clutch is made of high-quality 20CrMnTi carburized steel, with a black-painted surface to strengthen its durability and stand large impacts, higher torque, and speed.		Round Ends Design Featuring the smooth round shaft ends, the tractor PTO link slip clutch can match with 1 3/8" implement input shaft and tractor output shaft. It stands out with superior protective ability better than the shear bolts.		Adjustable Torque Limiter Eight tension springs can help you adjust the torque setting. Tighten or loosen the nuts by 1/4 of a turn to increase or decrease the torque and check its tightens for correct operation.

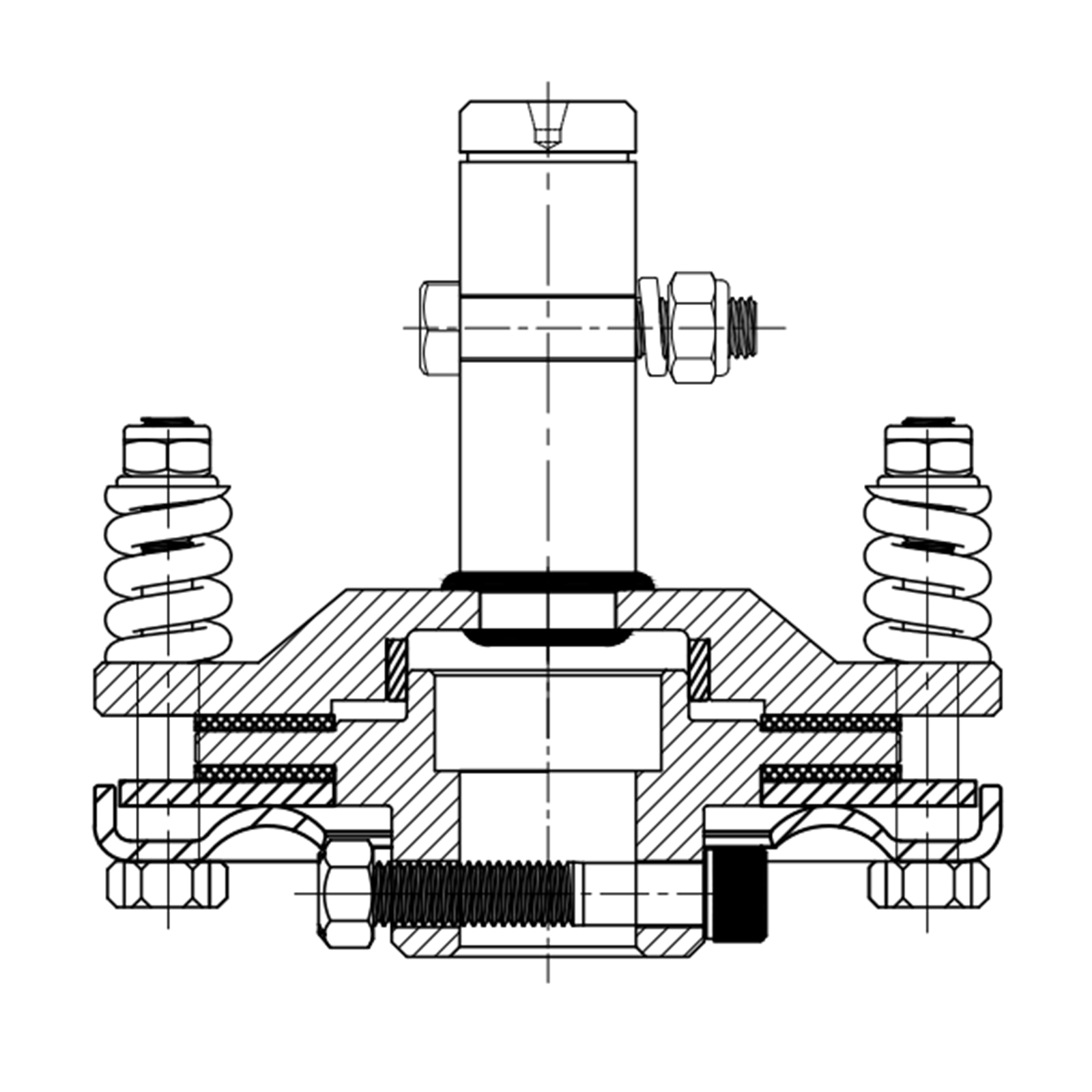

	Protective Friction Discs The friction discs, assembled in the fiction lining, are likely to be worn, so we provide you with two additional discs for replacement. And the adjustment range of our clutch is 20 to 55 hp.		Compact Structure The PTO slip clutch consists of springs, friction plates, pressure plates, and a flywheel, with two round ends attached to the engine/clutch shaft to perform the implements better.		Wide Application PTO slip clutches are most commonly used on rotary tilling attachments like rotavators, stone buriers, brush hugs, and rotary mowers. They can also be used as hay tenders, balers, hole diggers, etc.

	Specification Material: 20CrMnTi Carburized Steel Color: Black Surface Finishing: Painted Female & Male End Size: 1-3/8" Round Pinhole Size: 1/2" Tension Springs: Adjustable Friction Discs: Replaceable Rated Torque: 900 nm Adjustment Range: 20 - 55 Horse Power
	Package Content 1 x PTO Split Clutch 2 x Friction Discs 1 x Torque Setting Instruction
