General description

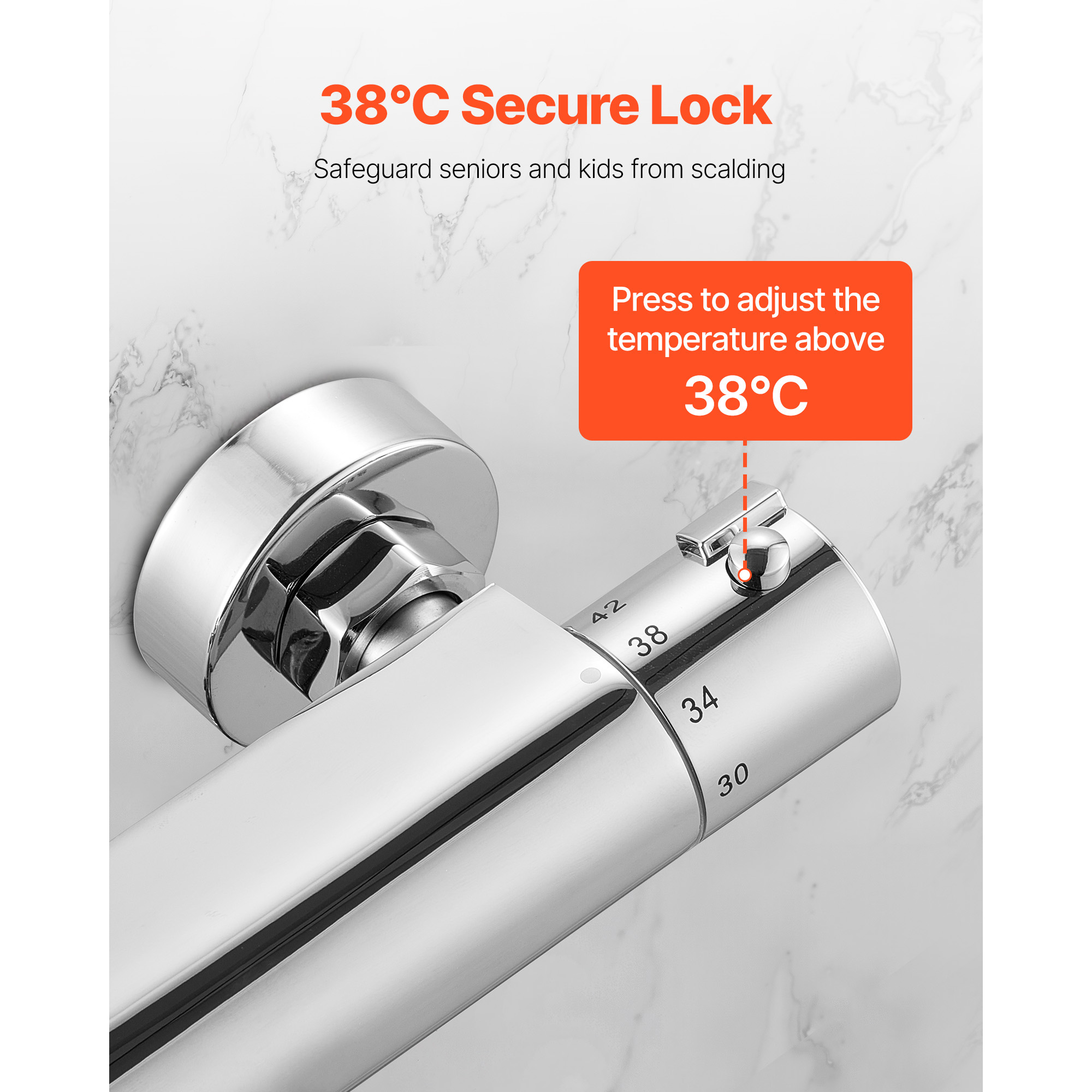

The Mophorn Thermostatic Shower Faucet Valve is expertly crafted from solid brass, ensuring durability and resistance to leaks. This innovative valve allows you to effortlessly set and maintain your desired water temperature at 38°C/100°F, providing a consistent and enjoyable shower experience for all family members. With a heat-resistant safety lock and customizable flow rate, this valve is designed for both comfort and efficiency.
Technical specifications
- Item Model Number: YH0311
- Inlet Thread: G1/2 inch
- Outlet Thread: G1/2 inch
- Hole Spacing: 5.31-6.5 inch / 13.5-16.5 cm
- Cold Inlet Temperature: 46.4-84.2℉ / 8-29℃
- Hot Inlet Temperature: 131-185℉ / 55-85℃
- Outlet Temperature Range: 68-122℉ / 20-50℃
- Water Inlet Pressure: 0.1-0.5 Mpa
- Color: Chrome Silver
- Main Material: Brass (Grade A)
- Surface Finish: Chrome Plated
- Net Weight: 2.54 lbs / 1.15 kg

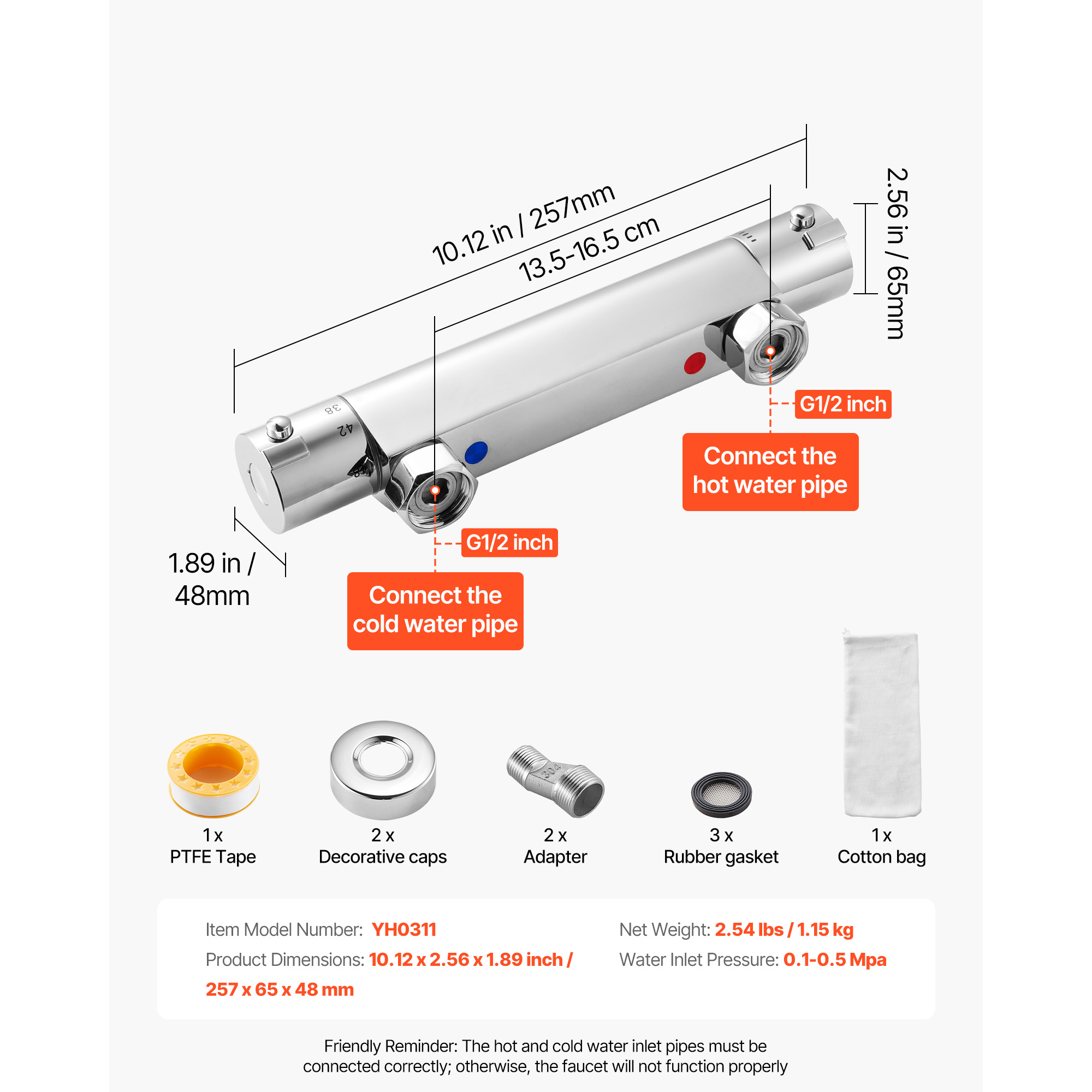

- Product Dimensions: 10.12 x 2.56 x 1.89 inch / 257 x 65 x 48 mm
Installation
The installation process is straightforward, featuring distinct red and blue indicators for easy identification. Connect the red inlet to the hot water supply and the blue inlet to the cold water line, ensuring correct alignment to maintain functionality.
Usage

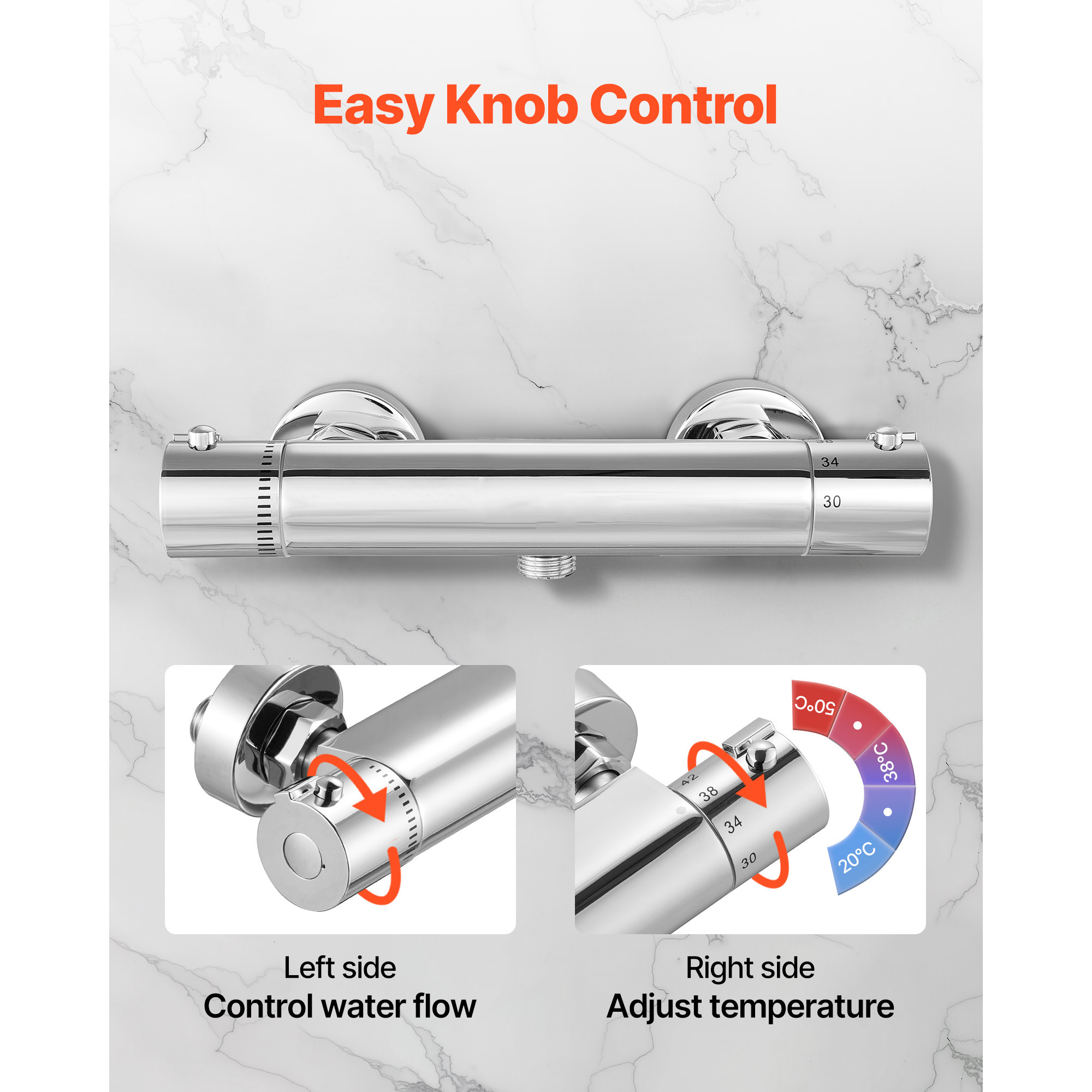

This thermostatic shower valve allows for precise temperature adjustments between 20–50℃, ensuring a comfortable experience. The integrated thermostatic valve maintains a steady water flow, preventing unexpected fluctuations and enhancing your shower experience.
