General description

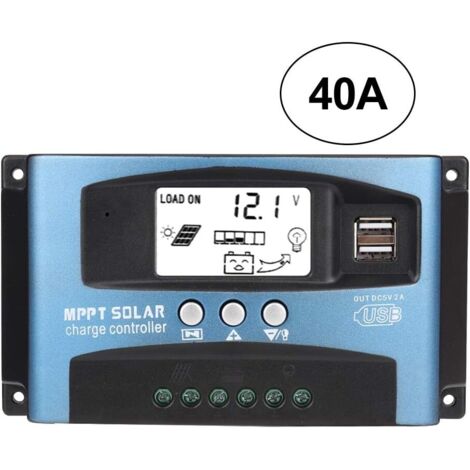

The MPPT 40A Solar Charge Controller is designed for efficient solar energy management, supporting both 12V and 24V systems. It features an intelligent battery regulator with an LCD display, ensuring accurate monitoring and control of charging and discharging processes.

Technical specifications

Rated current: 40A

MPPT tracking efficiency: up to 99.9%

Circuit energy conversion efficiency: 98%

Charging efficiency: 15%-20% higher than general controllers

Display: Large screen LCD

Protection features: Overheating, overcurrent, short circuit, open circuit, reverse connection

Installation

Connect the battery first, then the solar panel.

Install the controller in a location away from high temperatures, humidity, and flammable materials.

Ensure the controller is placed in a ventilated area and not covered.

Avoid installation in vehicles.

Usage

Adjustable charging and discharging parameters for various battery types.

Utilizes three-stage charging management to enhance battery longevity.

Continuous detection during charging for optimal performance.

Features

Amperage
40 A
Voltage
24 V
Type of solar charge controller
MPPT
ManoMano Reference
ME94196373
MMID
596221085140
Product code
TiR-UK-06487
EAN
8420468949390

MPPT 40A Solar Charge Controller, 12V 24V USB Solar Panel Battery Controller Intelligent Battery Regulator with LCD Display(40A)
