MPPT Wind Solar Hybrid Charge Controller Generator Hybrid System 24V/48V 1000W

Description

The power generation of traditional wind controllers is easily restricted by wind speed. This wind solar hybrid controller can achieve efficient charging at low speeds. It has multiple protection functions, allowing you to use it safely. Meanwhile, the LCD screen and keys make it convenient for you to use. It's your ideal choice!

Specification

Color: Green

Material: Aluminium Alloy

Style: Modern

Voltage: 24V/48V (Automatic Identification)

Wind Power: 1000W

Solar Power: 1000W

Net Weight: 2.65kg/5.84lbs

Gross Weight: 2.8kg/6.17lbs

Package Size: 36*29*11cm/14*11*4inch

Controller Size: 14*16.5*6.6cm/5.5*6.4*2.5inch

Load Resistor Size: 23.6*11cm/9*4inch

Load Resistor Cylinder Diameter: 6cm/2.3inch

Package Included

1* Wind Solar Hybrid Controller

1* Load Resistor

Key Features

• High-quality Material: This product is made of high-quality aluminum alloy, which is wear-resistant, corrosion-resistant, heat-resistant, strong, durable, and not easy to deform.
• MPPT Charging Method: The controller adopts an advanced high-speed processor and MPPT control algorithm with a boost charging function to realize MPPT charging with high response speed, high reliability, and high industrial standards at low wind speeds.
• Multiple Protection Functions: The controller has multiple protection functions, including lightning protection, solar anti-reverse charging, automatic over-voltage and over-current braking, reverse battery connection and open-circuit protection, allowing you to use it safely. Meanwhile, the controller will start the stepless unloading function to protect the equipment system under high wind speed or excessive power of the wind generator.
• Automatic Identification: It can automatically identify 24V or 48V voltage, which is very convenient to use.
• Increase Power Generation: It uses dual charging of wind energy and solar energy with a high power of 1000W and 1000W, which can effectively increase power generation. Meanwhile, it works day and night, which can promote working efficiency.
• User-friendly Design: The controller has multiple keys, allowing you to adjust the parameters according to your needs and different operating environment.
• Lightweight and Compact: It is lightweight(2.65kg/5.84lbs), compact (5.5*6.4*2.5inch), and easy for you to move.

Details

Indicator Light: The red indicator light on the controller will light up when the product is charged, and the output indicator light will light up when the product output is normal, which can help you to better grasp the usage status of the product.

LCD Screen: The LCD screen with a clear interface can display real-time voltage, power, etc, helping you to grasp the use status of this product.

Application

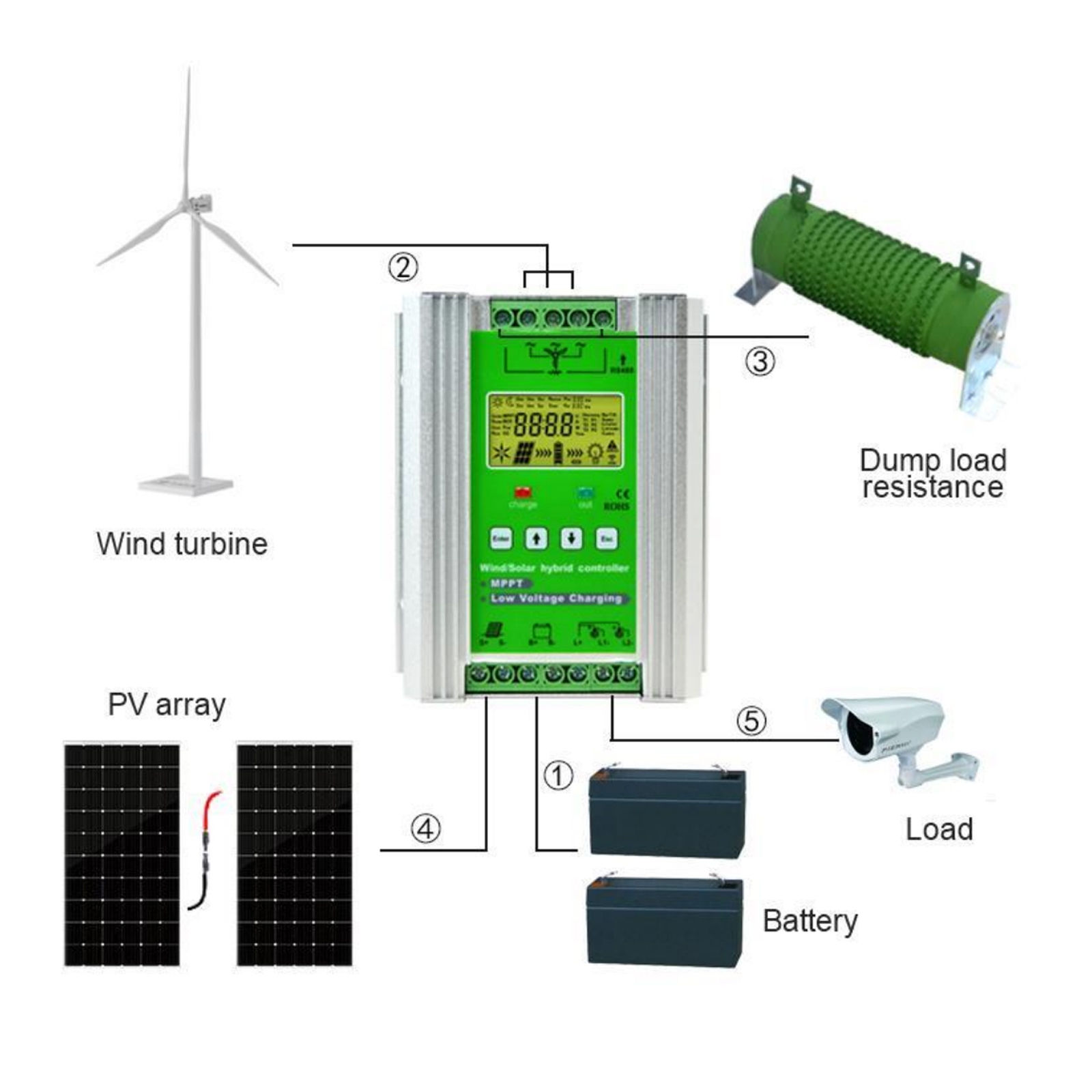

It is suitable for hybrid power generation, street light systems, household power, field monitoring, etc.

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
