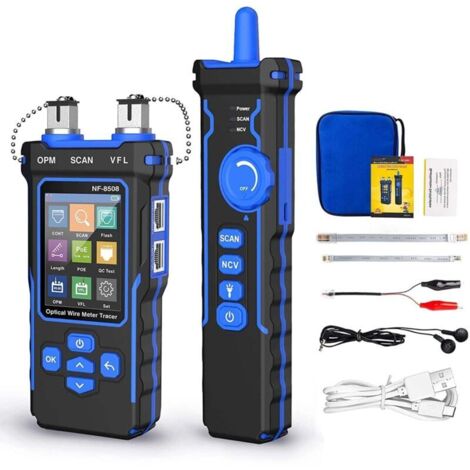

Multifunction PoE network cable tester for Cat5 and Cat6, with OPM/VFL/CONT/SCAN/Illuminate function

【Multi-functional Testing】: Our network cable tester combines the functionality of an optical wattmeter with a wide range of tests, such as on/off, short circuit, crossover, and crosstalk of network and video cables, as well as optical performance at corresponding wavelengths.

【Cable Scan】: Two tracking modes are available: digital and analog. You can switch between the two modes at will. Press the "SCAN" button on the screen, then the "OK" button to select the mode you need.

【PortFlash】: By observing the flashing frequency of the LEDs on the switch/router, you can quickly find the cable head corresponding to the switch. A more convenient and faster method for finding cables.

【Built-in Rechargeable Battery】: Built-in 1500mAh 3.7V lithium battery with up to 10 hours of battery life; Type-C charging is more convenient. In addition, the self-contained LED backlight solves the problem of working in the dark.

【LCDDisplay】：Thanks to a larger backlit LCD screen, the detection results are displayed more clearly and more intuitively. You can independently adjust the language, backlight, brightness, LED lighting and automatic shutdown time.

Specifications: Material: ABS Cable Type: CAT5/CAT6 Voltage: 60V Package Weight: 586g/20.67oz Package Size: 24*16.5*5.5cm/9.45*6.50*2.17in

TRANSMITTER:

WiremapPort: RJ45

Continuous Distance: ≥300m

Cable Sequence and Default: Yes

STP/NTP: Yes

Short Circuit Reminder: Yes

Anti-interference and Normal Mode: Yes

Audio Transmission Frequency: 455KHz

Audio Transmission Distance: RJ45 300m

NVL: 10mW

Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)

Crimp: RJ45 - 8 cores, minimum length ≥10cm

Low Voltage Request: <3.5V±0.1V, power indicator flashes

Power Supply: 3.7V 1500mAh Lithium Polymer Battery

Size: 148*70*32mm/5.83*2.76*1.26in

RECEIVER:

Scanning Current: ≤300mA

Continuous Distance: ≥300m

NCV Detection: Yes

Lamp: Yes

Low Voltage Alert: Yes

Power Supply: 3.7V 1500mAh Lithium Polymer Battery

Size: 198*50*28mm/7.80*1.97*1.10in

Package List:
