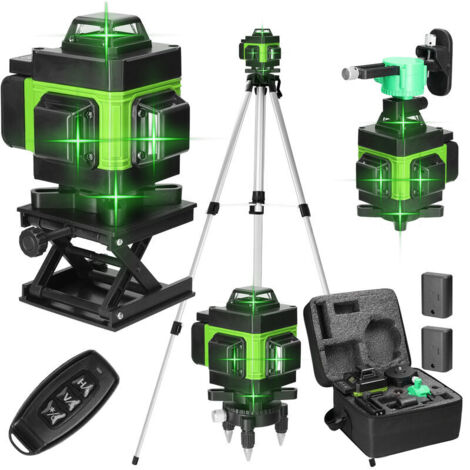

Multifunctional 4D 16 Lines Laser Level 3° Self-Leveling Machine USB Rechargeable Lithium Battery Leveling Tool with 1.5M 3-Height Adjustable Alloy Extension Bar Tripod - Green - Green

~~£157.99~~

Product information

Description

General description

This multifunctional 4D laser level features 16 lines for precise positioning and a self-leveling system that ensures flexibility and stability. It provides accurate horizontal and vertical references, making it ideal for indoor construction layouts and calibrations. The device is lightweight and portable, allowing for easy mobility and storage.

Technical specifications

Main Material: Plastic + Metal

Laser Class: Class 2, Output Power < 1mW

Line Type: 4 * 360°

Wavelength: 532nm (Green)

Battery: 2 * Rechargeable Lithium Battery, 3.7V, 2400mAh (Included)

Horizontal/Vertical Accuracy: ±0.2mm/10m

Self-Leveling Range: ±3°

Working Temperature: -5℃ to 50℃

Waterproof Level: IP54

Working Distance: 25m

Tripod Interface: 5/8"

Level Machine Dimensions: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in

Tripod Base Size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in

Wall Bracket Size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in

Ironing Board Size: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in

Lifting Platform Size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in

Carrying Bag Size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in

1.5m Tripod Size: 560 * 105 * 90mm / 22.05 * 4.13 * 3.54in

Package Size: 440 * 215 * 255mm / 17.32 * 8.46 * 10.04in

Package Weight: 2455g / 5.41lb

Compatibility and accessories

Includes a 1.5m tripod made of thick aluminum alloy with adjustable heights

Compatible with most laser levels featuring a 5/8" interface

Comes with a remote control for easy operation

Includes a 1/4 inch to 5/8 inch threaded adapter

Packing list: 1 * Level machine, 2 * Batteries, 1 * Battery charger, 1 * Tripod base, 1 * Wall bracket, 1 * Ironing board, 1 * Lifting platform, 1 * Remote Control, 1 * Carrying Bag, 1 * Guideline, 1 * Tripod

Installation

Equipped with a T-shaped bracket featuring a 360° rotating base for easy target alignment

Adjustable height lifting bracket with a non-slip texture for stable placement

Usage

Ideal for wall stud layout and partition installation

Press the "OUTDOOR" button for tilt mode to project lines at any angle

Adjust laser brightness according to working conditions using the remote control

Other information

Do not look directly at the laser light

This instrument complies with the laser radiation safety evaluation standard

Short press the "OUTDOOR" button or long press the "H" or "V" button to adjust laser brightness

LCD screen displays remaining battery capacity

Scan the QR code on the back of the remote control to download the mobile app for convenient control

Features

Brand
GOTRAYS
Range
0.3 m
Number of laser lines
16
Beam colour
Green
Self-levelling (feature)
Yes
