Huepar LR-6RG Laser Detector for Pulsed Green/Red Lasers, 3-Sided LED Display, 50-60m Range, Digital Receiver for Line Lasers, Only Compatible with 5:5 PWM and 10KHz Frequency

Name: Huepar LR-6RG Laser Detector for Pulsed Green/Red Lasers, 3-Sided LED Display, 50-60m Range, Digital Receiver for Line Lasers, Only Compatible with 5:5 PWM and 10KHz Frequency
Brand: HUEPAR
SKU: LR-6RG
Price: 39.99 GBP
Availability: InStock
Rating: 4.47 (86 reviews)

#1 in sales

~~£69.99~~

Sold by Huepar Official Store

Often purchased together

Product information

Description

General description

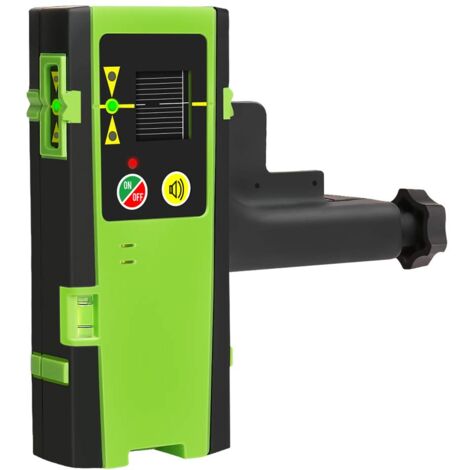

This Huepar LR-6RG Laser Receiver is designed for use with Huepar laser levels that feature a Pulse Mode function. It is capable of detecting both red and green pulse laser beams, making it ideal for various applications in bright light conditions. The receiver has a working range of up to 60 meters (200 feet) and features a clear three-sided LED display for easy visual readouts.

Technical specifications

Pulse duration: 50 μs

PWM: 5:5

PRF Pulse Repetition Frequency: 10 KHz

Display: Three-sided LED indicator

Leveling Accuracy: ±1.5 mm (±1/17 in.)

Laser Reception Window Width: 20 mm (4/5 in.)

Laser Reception Window Height: 20 mm (4/5 in.)

Working Distance: 60 m (200 ft)

Operating Time: 70 hours

Auto Power Off: 8 minutes (with no signal detected)

Power Source: 1 x 9V Dry Battery

Operating Temperature Range: -10℃ to +50℃

Storage Temperature Range: -25℃ to +70℃

Dimensions (LxWxH): 140.5 mm × 60 mm × 35 mm (5.5 x 2.5 x 1.5 inches)

Weight: 143 g with battery

Compatibility and accessories

This laser receiver is compatible with the following Huepar laser levels: BOX-1G, BOX-1R, HM03CG, GF360G, B03CG, S02CG, S03CG, S03CG-L, S04CG, S04CG-L, S03DG, S03DG-L, 621CG, 621CR, 6211CG, 7211CG, 703CG, 704CG, 503CG, 503DG, B02CG, B21CG, 602CG, 602CR, 603CG, 603CR, 603CG-BT, 901CG, 902CG, 904DG, 8211G, LS03CG, LS03DG, LS04CG, NT411G, LS41G, L141G, L011G, P02CG, P03CG, P03DG, P04CG, R03CG, 622CG, 622CR, 5011G, E011G, W04CG, W03CG, W03DG, etc. The package includes:

1 x Huepar Green and Red Beam Laser Detector

1 x Heavy-duty clamp

1 x 9V Dry Battery

Installation

The receiver comes with a heavy-duty clamp that allows for easy mounting to a rod or other target points.

Usage

To use the Huepar Laser Receiver, ensure that the Pulse Mode of the laser level is turned ON. This is necessary for the receiver to function correctly with the laser level. The device features optical and acoustic signals to help locate the laser plane quickly and accurately, with beep sounds indicating when the target is found.

Other information

Laser Class: Class 2 < 1mW power output. Please note that this receiver is not compatible with rotary laser levels and specific Huepar models such as 9011G, 9211G, FL360R, FL360G, 8300G, B011G, B011R, FC011G, FC011R, 9300G, GK011DG, RL200HR, RL200HVG, RL300HR, and RL300HVG.

Features

Brand
HUEPAR
Colour
Green
Pcs per pack
1
Warranty
2 year(s)
Origin
Made in China
Power source
Batteries
Height
3.5 cm
Width
6 cm
Length
14.05 cm
Material
Acrylonitrile butadiene styrene (ABS)
Weight
143 g
Range
6000 cm
Type of accessories for measuring & detection tool
Reception cell
ManoMano Reference
ME26379941
MMID
878325321449
Product code
LR-6RG
EAN
5012663922228

Customer reviews

4,5

/ 86 Reviews

Reviews verified by ManoMano

Llouis

Pro Customer

Published on 13/06/2023, France

Super happy with this product! The laser is precise, of good quality and works perfectly. I recommand it

PPascal

Published on 26/05/2023, France

Not yet tested just try it is functional very sensitive to detect the laser beam good value for money

Jjoel

Published on 15/01/2025, France

Bought for outdoor work with a Parkside laser reference PKLLP 3360 A1, because Parskide does not make a laser receiver, so they are both compatible (be careful for green cross laser and not rotating), I tested with my laser at a distance of about 10 meters, works perfectly well, to see in a situation on a construction site. Too bad it is powered by a 9 volt battery and not a rechargeable battery, but for the price, you can't have everything. I recommend for the price, nothing to complain about, to see the reliability and robustness over time.

1 person found this helpful

GGILBERT

Published on 09/06/2022, France

Good product, is at the same height as the laser

JJulien

Published on 01/05/2021, France

Works very well; a little complicated with the sun outside but it is done! I was able to position all the chairs of my construction to the millimeter.

SSimon

Published on 25/05/2023, France

Simple and effective, easy to use... at the top!
