Multifunctional AC40-300V 100A AC Voltage and Current Meter with Color LCD Digital Display Power Monitor
Of which environmental contribution £0.01 including VAT.
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
General Description

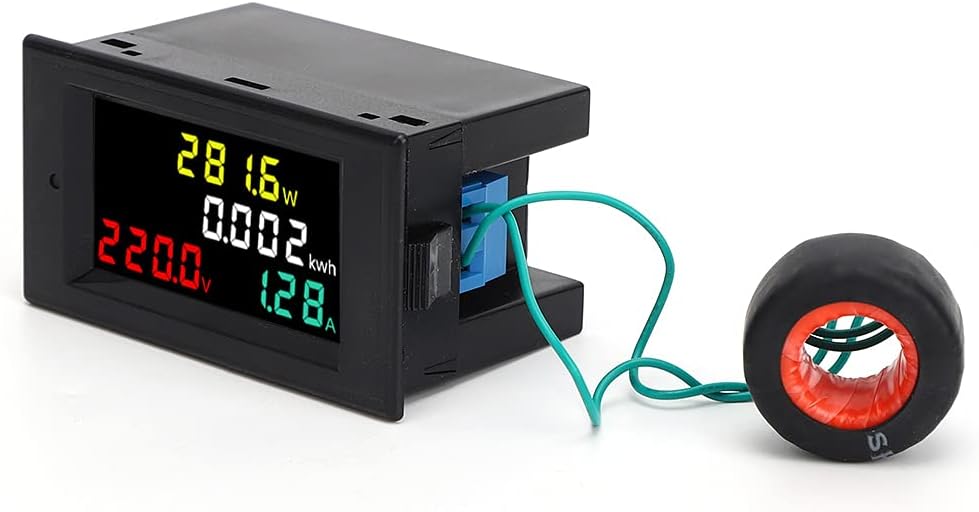

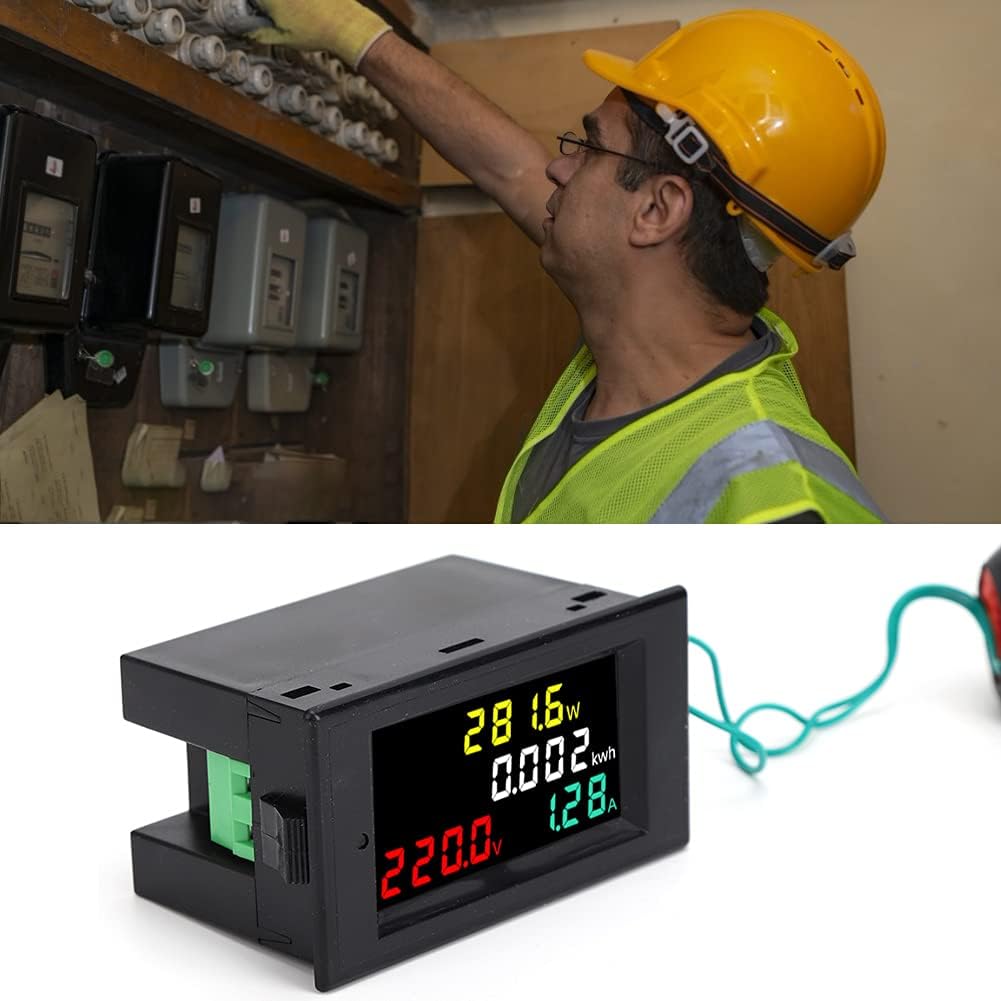

The multifunctional AC40-300V 100A voltage and current meter is a digital power monitor with a high-definition color LCD screen. It allows simultaneous display of AC voltage, AC current, active power, electricity quantity, and electrical energy measured. With a wide 178° viewing angle, this device is designed for easy and efficient use.Technical Specifications
- Measurement Accuracy: 1% ± 2 digits
- Measurement Range: AC Voltage: AC40.0-300.0 V
- AC Current: AC0-99.99 A (display resolution: 0.01 A, maximum display: 100.0 A)
- Active Power: 40-300 V, display range 0-30,000 W, 200-450 V, display range 0-45,000 W (display resolution: 0.1 W between 0 and 9,999.9 W, 1 W above)
- Power: Display range: 0-10,000 kWh (display 9999.999, above 10 kWh displays 00000.99 kWh, maximum display 9999999 kWh)
- Measurement speed: 2 times per second
- Dimensions: 79*43*48 mm
- Installation size: 76*39 mm
- Backup/memory function: retains data in case of power failure
- Transformer hole diameter: 15.5 mm
- Secondary conductor wire: extension possible from 0.5 to 3.5 meters
Installation
- Connect the secondary end (green wire) of the current transformer to the blue terminal of the instrument.
- Pass the measuring loop wire through the central round hole of the current transformer.
- Connect the voltage measuring cable to the Green terminal of the meter.
- Press the reset button for 5 seconds to reset the accumulated power value.
Operation
- Once the device is powered on, the instrument displays the measured value.
- To measure mains voltage, check the appropriate voltage range (40-300 V AC or 200-450 V AC).
- Avoid incorrectly connecting the voltage input terminals and the current transformer to prevent damage to the instrument.
Other Information
Features
- BrandSNQ
- Length1 cm
- Width1 cm
- Height1 cm
- Voltage1 V
