General description
The Munsen Bossed Pipe Clip is designed for 25 NB pipes (34 mm Pipe OD) and is made from T316 Marine Grade Stainless Steel, featuring a fire retardant rubber lining. Often referred to as Munsen rings, these bossed pipe clamps are similar to two-bolt pipe clips but include a threaded boss for secure attachment to a base plate. This design allows for flexibility in connecting multiple clamps in various orientations, making it suitable for a range of pipe support designs.

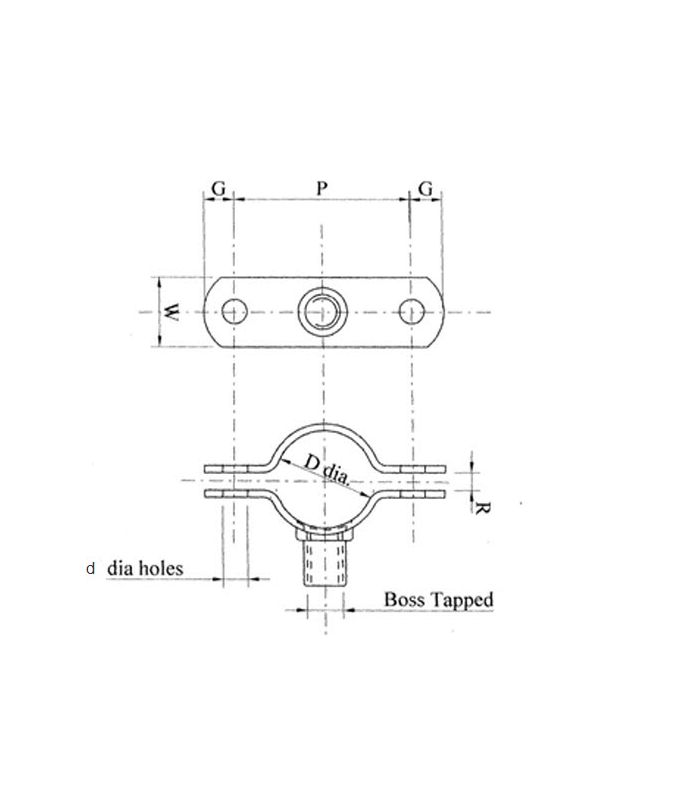

Technical specifications
- Pipe Size: 25 NB (Nominal Bore)
- Pipe Outside Diameter: 34 mm
- Inside Diameter of Bare Metal (reduced with Clip Strip): 45 mm
- Hole Centers: 72 mm
- Dimensions (W x T): 25 x 3 with M10 Boss
- Hole center to edge of plate: 10 mm
- Distance between halves: 4 mm
- Includes: 2 M16 x 16 mm setscrews and shake-proof washers
Materials
The clip is constructed from A4 (T316) Marine Grade Stainless Steel, which offers superior corrosion resistance compared to A2 in certain environments, making it ideal for marine applications, especially in direct contact with saltwater.
