MY6818 Multifunctional Cable Detector Underground Wire Short Circuit Tester Diagnostic Tool

~~£446.43~~

Of which environmental contribution £0.10 including VAT.

Sold by Sinocor GmbH

Product information

Description

GENERAL DESCRIPTION

Multifunctional cable detector, suitable for detecting short-circuit and open-circuit faults in cable lines, as well as for locating fault lines in underground cable conduits. The digitally encoded signal ensures clear reception by the receiver, preventing false readings due to interference. The transmitter has a self-check function, and the receiver's sensitivity is adjustable. The receiver features automatic frequency scanning and a mute function, useful in quiet environments.

TECHNICAL SPECIFICATIONS

Item Type: Cable Detector
Material: ABS
Model: MY6818
Transmitter Power Supply: 1 x 6F22 9V Battery (Batteries Not Included)
Receiver Power Supply: 6 x AAA 1.5V Batteries (Batteries Not Included)
Purpose: Cable Detection
Automatic Frequency Scan Function: Receiver
Self-Check Function: Transmitter
Receiver Sensitivity: Auto/Manual Adjustment
Mute Function: Transmitter-Receiver
Voltage Measurement Range: Transmitter 12V-400V (AC/DC)
Output Signal : 125kHz transmitter
Voltage: up to 400V (AC/DC)
Cable measurement depth: receiver 0-2.5m
Main voltage measurement: receiver 0-0.4m
Storage temperature: -20°C to 60°C
Relative humidity: up to 80%
Measurement height: up to 2000 meters

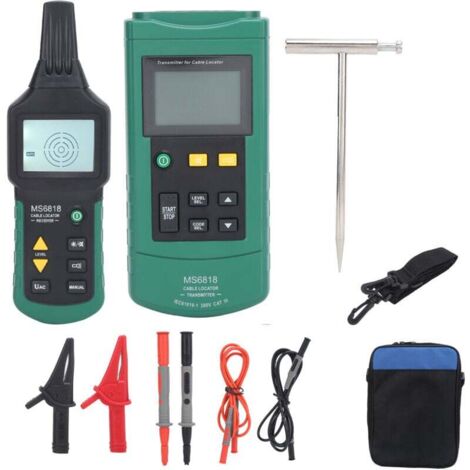

PACKAGE LIST

1 x transmitter (battery not included)
1 x receiver (battery not included)
2 x test leads
2 x test pens
2 x clamps
1 x ground rod
1 x strap
1 x tool bag
1 x manual

Features

Brand
TEHTUY
Width
1 cm
Length
1 cm
Suitable for
Leather
Material
Acrylonitrile butadiene styrene (ABS)
Main detection technology
Ultrasound
Voltage
1 V
ManoMano Reference
ME99018026
MMID
497754269829
Product code
mano-HWLX-09086
EAN
6282768383449
