General description
NuaFix Adjustable Bracket is designed for photovoltaic solar panels, allowing for a tilt angle adjustment between 15° and 30°. Made from durable AL6005-T5 aluminum, these weather-resistant brackets are perfect for mounting mini PV systems or balcony power plants on flat surfaces such as garages, gardens, and balconies. The included SUS304 stainless steel bolts and nuts ensure a secure installation.Technical specifications
- Dimensions (long piece closed): 35 x 35 x 360 mm
- Adjustable length: 390 - 693 mm
- Material thickness: 1.5 mm
- Dimensions of mounting piece: 105 x 35 x 53.8 mm
- Rubber support dimensions: 30 x 35 x 2 mm
- Screws: M8 x 60
- Weight: 1.87 kg
- Material of mounting bracket: Aluminium AL6005-T5
- Material of screws & nuts: Stainless steel SUS304
- Angle adjustment: 15 - 30°
- Color: Silver
Compatibility and accessories
- Suitable for flat surfaces

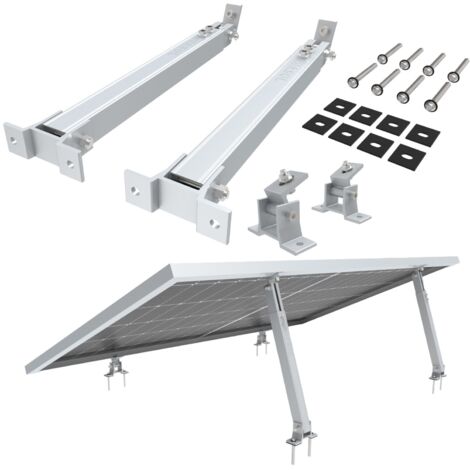

- Scope of delivery includes: 2x long bracket, 2x short bracket, 8x EPDM support, 1x screw set
Installation
The adjustable brackets are easy to attach to the solar panel, allowing for a quick setup of your solar system.
Usage
These brackets are ideal for optimizing the angle of solar panels to maximize energy yield from sunlight.
