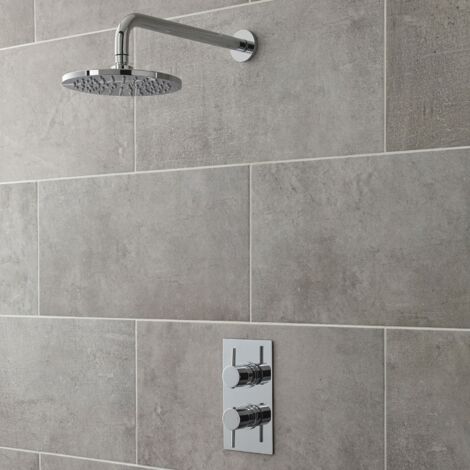

Nuie Twin Round Thermostatic Concealed Shower Valve with Fixed Head and Arm - Chrome

Name: Nuie Twin Round Thermostatic Concealed Shower Valve with Fixed Head and Arm - Chrome
Brand: NUIE
SKU: SBR09TW1
Price: 242.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

Nuie Twin Round Thermostatic Concealed Shower Valve with Fixed Head and Arm in Chrome offers a complete solution for a single outlet showering experience. This minimalist and sleek design is perfect for quick and easy installation, making it a popular choice for homes. The valve is WRAS, TMV2, and TMV3 approved, ensuring reliable performance and safety.

Technical specifications

Shower Type: Thermostatic Shower Valve

Valve Position: Concealed

Shower Outlets: 1

Shower Includes: Shower Valve, Fixed Head, Shower Arm

Shower Valve Controls: 2

Shower Arm Length: 335 mm

Shower Head Width: 200 mm

Shower Head Depth: 200 mm

Minimum Pressure: 0.1 Bar

Inlet Connection Size: 15 mm Compression

Material: Brass/ABS

Colour: Chrome

Weight: 3.4 kg

Flow Rate @ 0.1 Bar: 5.5 l/min

Flow Rate @ 0.5 Bar: 14 l/min

Flow Rate @ 1.0 Bar: 20 l/min

Flow Rate @ 2.0 Bar: 29 l/min

Flow Rate @ 3.0 Bar: 44 l/min

Installation

During installation, extra care must be taken to avoid damaging the fittings. The valve can be fitted either vertically or horizontally, and the cartridge is fully reversible, allowing for easy adjustment if hot and cold supplies are reversed.

Usage

The thermostatic control maintains an accurate temperature within +/- 2 degrees, even with fluctuating water pressure. Full thermal protection prevents scalding in the event of hot or cold water shut off, ensuring a safe showering experience.

Other information

The patented cartridge is highly resistant to calcium build-up, making it suitable for use in hard water areas. The product comes with a 5-year guarantee (12 months on serviceable moving parts from the date of purchase).

Features

Brand
NUIE
Material
Brass
Intended use of the tap
Shower
Shape
Rounded
Height
20 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Number of jets
1
Weight
3.4 kg
Pressure
3 bar
Wall-mounted tap
Yes
Tap head only
Yes
Type of installation method
With stand
Tap type
Single-lever mixer
ManoMano Reference
ME30611731
MMID
351180468297
Product code
SBR09TW1
EAN
5056462601625
