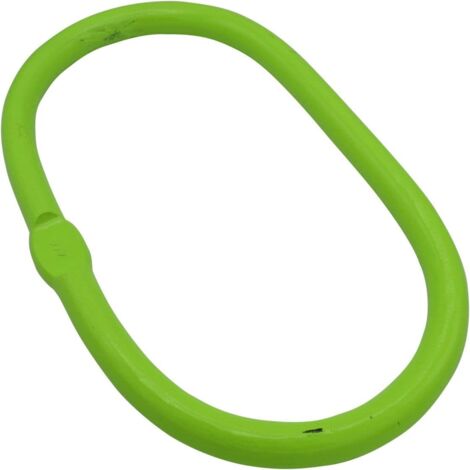

Oblong Oversized Master Link with Flat Grade 100 13MM (6.7 Ton Chain Lifting Gear)

Name: Oblong Oversized Master Link with Flat Grade 100 13MM (6.7 Ton Chain Lifting Gear)
Brand: SECUREFIX DIRECT
SKU: SFG10OSML13
Price: 29.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Oblong Oversized Master Link with Flat Grade 100 is designed for heavy-duty lifting applications. This high-quality lifting gear is primarily used in the lifting gear industry for chain slings, acting as the main connecting point. Its oversized dimensions make it ideal for larger attachment points compared to standard master links.

Technical specifications

Material: Grade 100

Finish: Light Green (Colour may vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Available Product Codes and Specifications:

Product Code: SFG10OSML10 - SWL: 4 Ton, A: 340 mm, B: 180 mm, C: 25.5 mm

Product Code: SFG10OSML13 - SWL: 6.7 Ton, A: 340 mm, B: 180 mm, C: 28 mm

Product Code: SFG10OSML19 - SWL: 16 Ton, A: 345 mm, B: 180 mm, C: 38 mm

Usage

This oversized master link is perfect for use in various lifting applications, particularly where larger attachment points are required. It is suitable for single leg chain slings and provides a reliable connection in lifting operations.
