General description

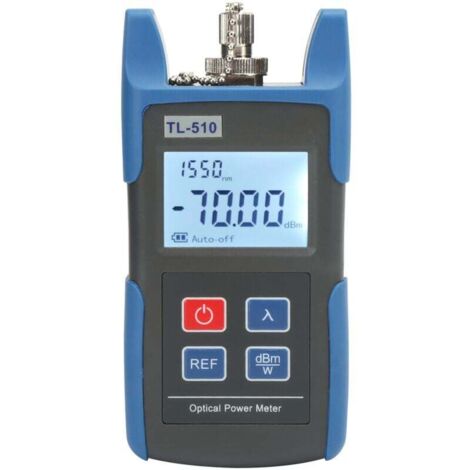

The Optical Power Meter is a high-precision measuring instrument designed for accurate optical power detection. It features a backlit LCD display with user self-calibration, ensuring high measurement accuracy and resolution. This handheld device is practical for field use and provides real-time monitoring of optical power.Technical specifications
- Model: TL510
- Measuring Range: -70 to +10 dBm (optimal range: -65 to 0 dBm)
- Wavelength Range: 800 to 1650 nm
- Calibration Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
- Detector Type: InGaAs
- Accuracy: <±3% at -10 dBm, 22℃
- Resolution: Linearity: 0.1%, Non-linearity: 0.01 dBm
- Operating Temperature: -10℃ to +50℃
- Storage Temperature: -20℃ to +70℃
- Relative Humidity: 90% at +30°C
- Power Supply: 3 AAA batteries (not included)
- Operating Time: > 120 hours (without backlight)
Compatibility and accessories
- Connector: Removable for FC/PC and SC/PC
- Included Accessories: 1 x Optical Power Meter (battery not included), 1 x Adapter Head, 1 x Storage Bag, 1 x Manual
Usage
The Optical Power Meter is designed for easy operation, allowing users to monitor optical power in real-time. It features a battery power display and provides a warning notification when battery power is low, along with an automatic shutdown function for energy efficiency.Other information
Features
- BrandYMYNY
- Power sourceBatteries
- Width170 mm
- Length200 mm
- MaterialPlastic
- ManoMano ReferenceME94108145
- MMID324480382567
- Product codeXHWD-M-XXW-10481
- EAN6246356532718
