PCP Air Compressor 4500psi 30MPa High Pressure Oil-Free Waterless Fan-Cooled Electric Pump Portable for Paintball DC12V

General Description

The high-pressure PCP air compressor is designed to provide a portable and efficient solution for inflating tanks. With a maximum pressure of 4500 psi (30 MPa), it is ideal for paintball, diving, and other applications requiring compressed air. This model operates without oil and without water circulation, making it easy to use and maintain.

Technical Specifications

• Item Type: PCP Air Compressor
• Pump Type: High Pressure Air Compressor (HPA)
• Maximum Inflation Pressure: 300 bar (4500 psi / 30 MPa)
• Maximum Inflation Capacity: 0.5 L (500 cc)
• Inflation Rate (0.5 L): 0-300 BAR in approximately 25 minutes
• Operating Voltage: DC12V (Vehicle Battery Powered)
• Cooling System: Air-cooled with built-in 12500 rpm fan
• Filter System: Filter with replaceable desiccant and dust filter
• Connector: Adapter 8mm quick-connect female thread

Compatibility and Accessories

• Compatible with most PCP air rifles, air pistols, paintball guns, and HPA tanks

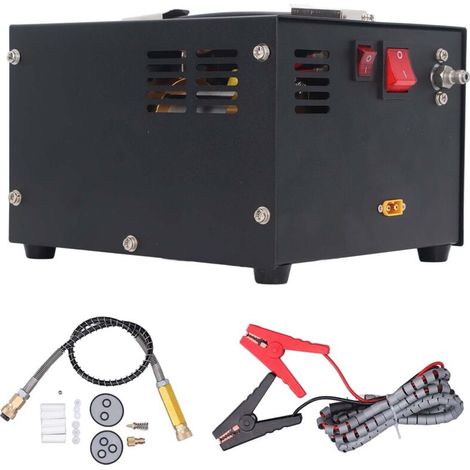

• Accessories included: air hose, DC12V car battery line, user manual, spare O-rings, moisture filter elements

Installation

Install the compressor by connecting it to a DC12V power source and to the tank to be inflated via the air hose. Ensure all connections are tight before use.

Operation

To use the compressor, turn it on and monitor the real-time temperature display to ensure safe operation. The compressor can fill a 0.5 L tank from 0 to 300 bar in approximately 25 minutes.

Other information

• The operating temperature must not exceed 75°C. In case of overheating, switch off the compressor to allow it to cool down.
