Product information

Description

General description

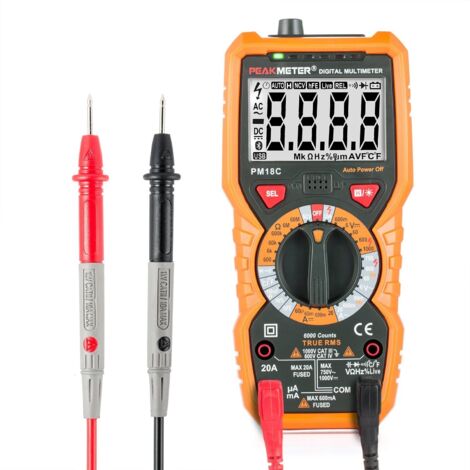

The PM18C Digital Multimeter is a versatile and essential tool for electricians, hobbyists, and households. It allows for safe measurement of AC/DC voltage, AC/DC current, resistance, diode, capacitance, frequency, and temperature. With its ergonomic design and high-quality materials, this multimeter is built for durability and comfort during use. It features a large digital backlit LCD display, making it easy to read in low light conditions, and includes a flashlight for added convenience.

Technical specifications

DC Voltage Range: 600mV/6V/60V/600V ±(0.5%+3), 1000V ±(0.5%+3)

AC Voltage Range: 6V/60V ±(0.8%+3), 600V/750V ±(1%+10)

DC Current Range: 60μA/60mA/600mA ±(0.8%+3), 20.00A ±(1.2%+3)

AC Current Range: 60mA/600mA ±(1%+3), 20A ±(1.5%+3)

Resistance Range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(0.8%+3), 60MΩ ±(1.2%+3)

Frequency Range: 0/600/6k/60k/600k/6m/10Mhz ±(1.0%+3)

Temperature Range: -20℃ to 1000℃ / -4℉ to 1832℉ ±(1.0%+3)

Maximum value: 6000

Battery: 4 x 1.5V AA (not included)

Safety level: CE, EN61010-1-2-030 CAT III 1000V CAT IV 600V EN61010-2-033, ROHS

Usage

The PM18C Digital Multimeter is designed for a wide range of applications, including diagnosing, repairing, and assembling electrical systems. It features a data hold mode to save screen readings in memory, making it a reliable tool for various tasks in schools, laboratories, and factories.

Features

Brand
TINOR
Certification body
CE
Shockproof
No
Smart
Yes
Memory function
Yes

Multimeter buying guide

A multimeter is an essential tool used to measure various electrical values. From digital multimeters with screens to analogue models with needle scales, multimeters all look alike so it can be tricky to choose the right device. Read on for our best safety practices and tips to help you find the best multimeter!

PM18C Digital Multimeter AC DC Automatic Digital Electrical Tester Non-Contact Voltmeter Ammeter Ohmmeter Voltage Detector Hold with Backlight Display
