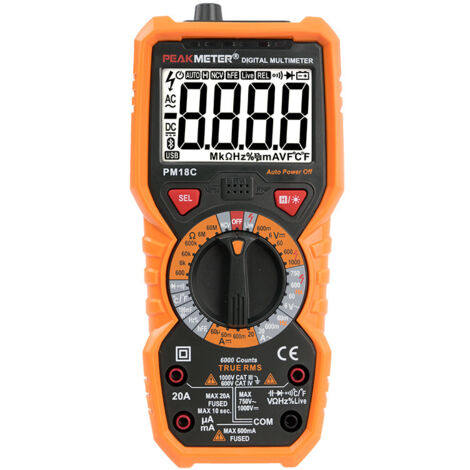

PM18C Digital Multimeter AC DC Automatic Digital Electrical Tester Non-Contact Voltmeter Ammeter Ohmmeter Voltage Detector Hold with Backlit Display - RWMultimeter, Ohmmeter & Ammeter

Multifunctional settings allow you to safely measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, frequency, etc. K-type thermocouples can be used to measure temperatures up to 250 degrees Celsius and can measure ambient temperature without connecting a probe. When measuring current and/or voltage, press the SEL key to display the frequency value.

SMART DESIGN - The high-quality PM18C and innovative packaging design make it a gift. Made of high-quality materials, the overall structure is solid and durable. The multimeter is ergonomically designed for comfortable and easy use.

MULTIFUNCTIONAL - Transistor test, automatic shutdown, low battery alert, and the 2.75-inch white LCD display allow you to easily measure under harsh conditions. backlight. The back of the console allows you to work hands-free. In the dark depths, a flashlight on the back will be invaluable.

Versatile - Data hold mode saves screen readings in memory. As a general measuring tool, it is widely used in schools, laboratories, factories, and other social occasions. It will become one of your reliable friends. It will help you troubleshoot problems with your household appliances or car.

Product Description:

The DMM is a very useful tool for electricians, hobbyists, and home use.

Can be used for diagnosis, repair, assembly, and wiring.

Also includes short-circuit protection and automatic power off.

Features:

1. This innovative product has a rich and modern design

2. Large digital backlit LCD display and rear flashlight

Can be used in low light conditions.

3. Non-contact voltage testing makes testing more convenient and safer

4. The results are displayed quickly and the update speed is 2-3 times/second

5.18C: l Use a K-type thermocouple (specified) at the test temperature.

Specification:

DC Voltage Range and Accuracy: 600mV/6V/60V/600V ± (0.5% + 3), 1000V ± (0.5% + 3)

AC Voltage Range and Accuracy: 6V/60V ± (0.8% + 3), 600V/750V ± (1% + 10)

DC Current Range and Accuracy: 60μA/60mA/600mA ± (0.8% + 3), 20.00 A ± (1.2% + 3)

AC Current Range & Accuracy: 60 mA/600 mA ± (1% + 3), 20 A ± (1.5% + 3)

Resistance Range & Accuracy: 600 Ω/6 KΩ/60 KΩ/600 KΩ/6 MΩ ± (0.8% + 3), 60 MΩ ± (1.2% + 3)

Frequency Range & Accuracy: 0/600/6k/60k600k/6m/10Mhz ±1.0%+3

Temperature Range & Accuracy: -20°C-1000°C/-4°F-1832°F±1.0%+3

Maximum value: 6000 value

General settings

Batteries: 4 x 1.5V AA (not included)

Safety level: CE, EN6 1010-1-2-030 CAT III 1000V CAT IV 600V EN61010-2-033, ROHS

Package included:

Digital multimeter
