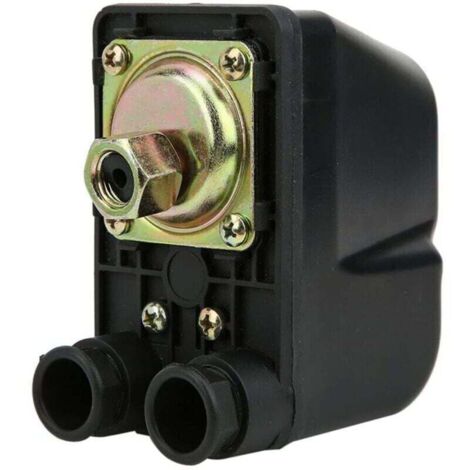

PM5 Water Pressure Switch Type, Automatic Water Pump Control Switch Display Pressure Controller

General Description

The PM5 water pressure switch is a pump control device designed to optimize the operation of water supply systems. Thanks to its advanced pressure sensing technology, it ensures precise water pressure regulation, guaranteeing a reliable and stable working environment. Its compact, all-in-one design facilitates installation and reduces maintenance costs.

Technical Specifications

• Condition: New
• Color: Black
• Material: Plastic
• Rated Voltage: 250 V
• Maximum Current: 10 A
• Pressure Range: 1.0 to 5.0 bar
• Pressure Setting: 1.4 to 2.4 bar, 1.4 to 2.8 bar
• Interface Thread: ZG1/4, G1/4
• Protection Rating: IP44
• Operating Temperature: 0 to 55°C

Compatibility and Accessories

• Compatible with self-priming pumps, jet pumps, and garden pumps.
• Ideal for irrigation and industrial water treatment systems.

Installation

The PM5 pressure switch is designed for easy installation. Simply connect it to the pumping system following the manufacturer's instructions. Ensure all connections are secure for optimal operation.

Operation

The PM5 water pressure switch operates automatically by monitoring the system pressure. When it reaches the maximum pressure, it shuts off the power supply, and when the pressure drops below a certain threshold, it restarts the pump. This allows for fully automatic control without manual intervention.

Other information

The product may be delivered in different versions, old or new, without affecting its performance. Please check that this is not a problem before placing your order.
