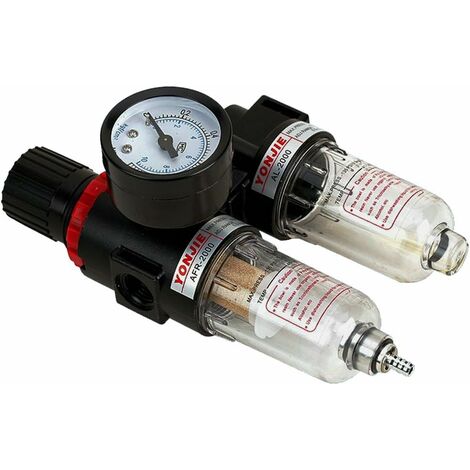

Pressure Reducer with Pressure Gauge Maintenance einheit1/4 Compressed Air Water Separator Pressure Regulator for Compressor, Pneumatic Filter Gas Regulator Processor

~~£21.41~~

Of which environmental contribution £0.01 including VAT.

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Permu UK

Product information

Description

General description

The Pressure Reducer with Pressure Gauge is designed for use in compressed air systems, featuring a water separator and pressure regulator. This unit is essential for maintaining optimal pressure levels and ensuring efficient operation of pneumatic tools and equipment.

Technical specifications

Diameter: PT 1/4

Weight: 0.3 kg

Structure: Filter regulator

Operating temperature: 0-60 ℃

Oil Recommendation: Gas Turbine No. 1 (ISOVG32)

Installation

Ensure proper installation of cleaning pipes and joints to prevent debris from entering the airway.

Pay attention to the direction of air flow, aligning with the indicated arrow.

Adjust the pressure regulator by rotating clockwise to increase pressure and counterclockwise to decrease pressure. Lock the adjustment by pressing the teeth.

For drainage, ensure there is no pressure; water will automatically discharge. When the water level exceeds the upper limit, drain in a timely manner to avoid poor dehumidification.

Usage

Adjust the oil amount by turning the needle valve clockwise to decrease and counterclockwise to increase the oil flow.

Regulate air flow by adjusting the needle valve; larger oil flow results in smaller air flow and reduced oil droplets.

For maintenance, clean or replace the filter by blowing from the inside to the outside. The transparent PC cup can be wiped with a clean cloth, but do not use materials that could damage it.
