Product information

Description

General description

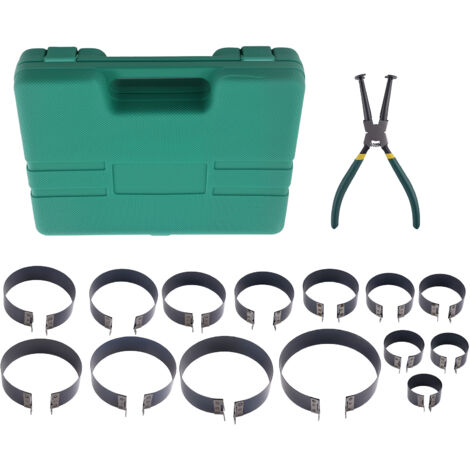

To compress piston rings for cylinder installation in trucks, tractors, automobiles, and racing engines. This Professional Piston Ring Compressor Cylinder Installer set includes 14 piston rings, a plier, and a solid storage box, making it suitable for various applications.

Technical specifications

Piston Diameter: 62mm-145mm (2.4''-5.7'')

Plier Shank Diameter: 9 mm / 0.35"

Piston Ring Height: 32 mm / 1.3"

Number of Piston Rings: 14

Plier Shank Material: 65Mn Blue Forged Steel

Material: Carbon Steel & Iron

Installation

To install the piston rings, follow these steps:

Install the correct clamping ring according to the diameter of the piston.

Attach the clamp ring onto the body of the brake caliper.

Use the snap ring to secure the installation ring part of the piston.

Hold the clamp handle to ensure the piston ring fully enters the groove while applying a small external force.

Finally, the piston can be successfully installed in the cylinder liner.

Usage

This tool set allows for easy operation, enabling the user to insert the piston quickly and compress the piston belt in small increments.

Features

Warranty
2 year(s)
Material
Iron
ManoMano Reference
ME94337527
MMID
389908966592
Product code
GG250804A845
EAN
6941477766775

Professional Piston Ring Compressor Cylinder Installer with Plier & 14 Band Tool
