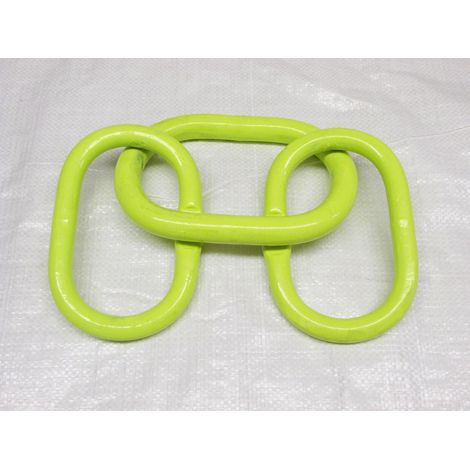

Quad Master Link Assembly Grade 100 10MM (6.5 Ton Lifting Chain Sling 3 4 Leg)

Name: Quad Master Link Assembly Grade 100 10MM (6.5 Ton Lifting Chain Sling 3 4 Leg)
Brand: ACE
SKU: SFG10QML10
Price: 43.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Quad Master Link Assembly is designed for use with 10MM chain sizes and is suitable for 3 & 4 leg chain sling assemblies. Made from Grade 100 material, these links are lighter yet stronger than Grade 80 counterparts, making them a high-quality choice for the lifting gear industry.

Technical specifications

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor Of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10QML08 - SWL: 3 Ton, A: 160 MM, B: 94.5 MM, C: 23 MM, D: 19 MM, E: 141.5 MM, F: 78 MM

Product Code: SFG10QML10 - SWL: 6.5 Ton, A: 204 MM, B: 120.5 MM, C: 31 MM, D: 23 MM, E: 163 MM, F: 94.5 MM

Product Code: SFG10QML13 - SWL: 15 Ton, A: 255 MM, B: 150 MM, C: 39 MM, D: 30 MM, E: 205 MM, F: 122 MM

Product Code: SFG10QML16 - SWL: 23 Ton, A: 315 MM, B: 200 MM, C: 47 MM, D: 32 MM, E: 200 MM, F: 123 MM

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
ACE
Warranty
1 year(s)
Pcs per pack
1
Material
Steel
