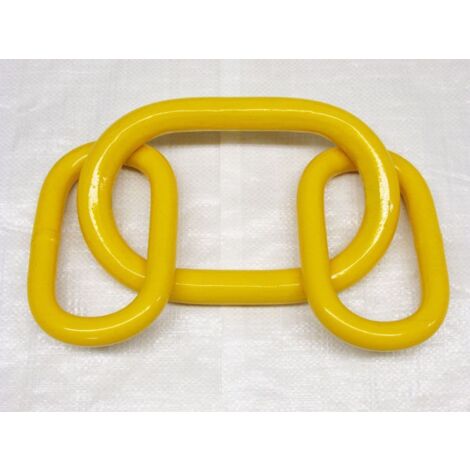

Quad Master Link Assembly Grade 8 with Enlarged Sub Links 28MM (Lifting Chain Sling Component)

Name: Quad Master Link Assembly Grade 8 with Enlarged Sub Links 28MM (Lifting Chain Sling Component)
Brand: SECUREFIX DIRECT
SKU: SFYASLQML28
Price: 29.61 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Quad Master Link Assembly Grade 8 with Enlarged Sub Links is a high-quality lifting gear component designed for use in the lifting gear industry, particularly for chain sling assemblies. These enlarged quad master links are suitable for 3 and 4 leg chain slings, ensuring reliable and safe lifting operations.

Technical specifications

Material: Grade 80 (8)

Finish: Yellow (Colour May Vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Available Product Codes and Specifications:

SFYASLQML22: SWL (Ton): 8.6, A (MM): 160, B (MM): 88, C (MM): 24, D (MM): 20.5, E (MM): 140, F (MM): 68

SFYASLQML28: SWL (Ton): 14.5, A (MM): 205, B (MM): 112, C (MM): 30, D (MM): 22.5, E (MM): 141, F (MM): 71.5

SFYASLQML36: SWL (Ton): 23.1, A (MM): 274, B (MM): 139.5, C (MM): 37.5, D (MM): 28, E (MM): 191, F (MM): 87

SFYASLQML40: SWL (Ton): 29, A (MM): 285, B (MM): 156, C (MM): 41.5, D (MM): 32.5, E (MM): 203, F (MM): 108.5

SFYASLQML45: SWL (Ton): 36.5, A (MM): 325, B (MM): 170, C (MM): 47, D (MM): 35.5, E (MM): 230, F (MM): 130

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Height
8.8 cm
Weight
100 g
Colour
Yellow
Maximum load
8600 kg
