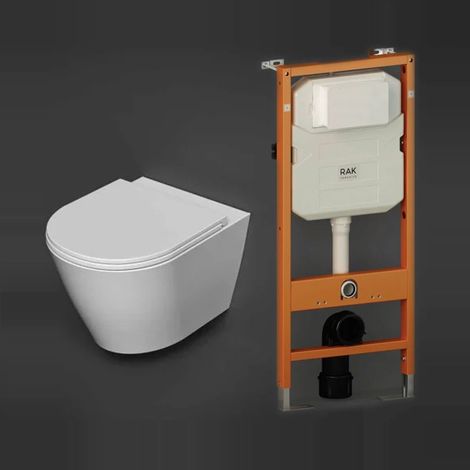

RAK Resort Rimless Hidden Fixation Wall Hung Toilet with Ecofix 1140mm Toilet Frame - Slim Sandwich Soft Close Seat

Name: RAK Resort Rimless Hidden Fixation Wall Hung Toilet with Ecofix 1140mm Toilet Frame - Slim Sandwich Soft Close Seat
Brand: RAK CERAMICS
SKU: FS04RAK12C+RSTWHPAN-HF/012
Availability: OutOfStock

Product out of stock

Product information

Description

General description

This RAK Resort Rimless Hidden Fixation Wall Hung Toilet combines modern design with eco-friendly features. It includes a quick-release slim sandwich soft close seat and a quality white finish that enhances the aesthetic appeal of your bathroom while creating an illusion of more space. The toilet is designed for efficient water saving and operates with silent flush technology, ensuring a comfortable and hygienic experience.

Technical specifications

Toilet Type: Wall Hung

Flush Type: Dual Flush

Toilet Pan Width: 360mm

Toilet Projection: 520mm

Toilet Pan Height: 430mm

Toilet Pan Outlet: Horizontal

Outlet Connection Size: 102mm

Toilet Seat Hole Centres: 155mm

Toilet Shape: Curved

Toilet Design: Fully Back to Wall

Frame Height: 1140mm

Frame Width: 500mm

Frame Depth: 150mm

Mounting: Wall

Frame Material: Steel

Cistern Full Flush: 6 Litre

Cistern Half Flush: 3 Litre

Maximum Operating Temperature (Water): 25°C

Flush Volume: 6/3 L adjustable to 4.5/3L

Installation

Easy to clean coating on glass and metal

Tool-free installation and maintenance on concealed cistern

Adjustable height for different flooring construction (0-200mm)

Wall brackets included

Protection cover box for service opening protects against moisture and dirt

Protection box can be cut to length

Wall fixture variable from 30 - 60 degrees

Usage

Comfortable and time-saving installation

Immediate post flush possible with factory setting

Water supply connection: rear or top centre

Other information

Toilet seat supplied with a 2-year guarantee from the manufacturer

25-year guarantee on wall hung pan and 1-year on toilet frame from the manufacturer

Flush plate sold separately (available in our store)

EAN Barcode: 4025416359722

Manufacturer Part Number(s): RSTWHPAN-HF/012+FS04RAK12C

Features

Brand
RAK CERAMICS
Length
15 cm
Width
36 cm
Material
Steel
Colour
White

Advice from

Toilet fixing frame buying guide

Wall-hung toilets fit perfectly into contemporary-style bathrooms as you only see the bits you need to clean: the pan, lid and flush button. Beyond these parts, the whole mechanism is hidden behind casing and supported by a toilet frame. Read on for all you need to know about picking the right frame for your toilet!
