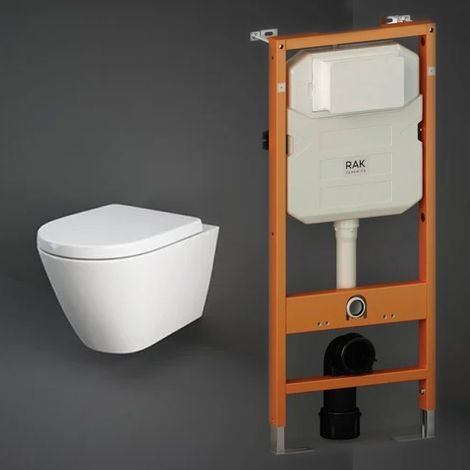

RAK Resort Rimless Hidden Fixation Wall Hung Toilet with Ecofix 1140mm Toilet Frame - Soft Close Seat

Name: RAK Resort Rimless Hidden Fixation Wall Hung Toilet with Ecofix 1140mm Toilet Frame - Soft Close Seat
Brand: RAK CERAMICS
SKU: FS04RAK12C+RSTWHPAN-HF/SC
Availability: OutOfStock

Product out of stock

Product information

Description

General description

This RAK Resort Rimless Hidden Fixation Wall Hung Toilet combines modern design with eco-friendly features. It includes a quick-release soft close seat and a quality white finish that enhances the aesthetic appeal while creating an illusion of more space. The toilet is designed for efficient water saving and incorporates silent flush technology, making it a comfortable and hygienic choice for any bathroom.

Technical specifications

Toilet Type: Wall Hung

Flush Type: Dual Flush

Toilet Pan Width: 360mm

Toilet Projection: 520mm

Toilet Pan Height: 430mm

Toilet Pan Outlet: Horizontal

Outlet Connection Size: 102mm

Toilet Seat Hole Centres: 155mm

Toilet Shape: Curved

Toilet Design: Fully Back to Wall

Frame Height: 1140mm

Frame Width: 500mm

Frame Depth: 150mm

Mounting: Wall

Frame Material: Steel

Cistern Full Flush: 6 Litre

Cistern Half Flush: 3 Litre

Maximum Operating Temperature (Water): 25°C

Flush Volume: 6/3 L adjustable to 4.5/3L

Installation

Easy to clean coating on glass and metal

Tool-free installation and maintenance on concealed cistern

Installation wall brackets with 90-degree drainage bend

Adjustable height for different flooring construction (0-200mm)

Protection cover box for service opening protects against moisture and dirt

Protection box for service opening can be cut to length

Wall fixture variable from 30 - 60 degrees

Usage

Comfortable and time-saving installation

Immediate post flush possible with factory setting

Water supply connection: rear or top centre

Other information

Toilet seat supplied with a 2-year guarantee from the manufacturer

25-year guarantee on wall hung pan and 1-year on toilet frame from the manufacturer

Flush plate sold separately (available in our store)

EAN Barcode: 4025416359722

Manufacturer Part Number(s): RSTWHPAN-HF/SC+FS04RAK12C

Features

Brand
RAK CERAMICS
Colour
White
Warranty
2.08333 year(s)
Material
Steel
Toilet accessories included
Toilet seat fittings
Adapted for PRM
No
Toilet seat features
Soft close
Compatible with soft-close toilet seat
Yes
Bowl sold separately
Yes
Wash function
No
Shape
Curve
Height of the bowl
43 cm
Width
36 cm
Integrated hand basin
No
Toilet seat material
Plastic
Supplied flush mechanism pre-assembled
No
Toilet and Bidet Set
No
Toilet drain position
Horizontal
Shut-off valve included
No
Support frame type
Wall
Flange type
Rimless
Type of bowl outlet
Horizontal
Type of toilet
Wall-hung
Type of flush mechanism
Double flush
Maximum flush water volume
6 l
Macerating toilet
No
ManoMano Reference
ME15522023
MMID
933829594826
Product code
FS04RAK12C+RSTWHPAN-HF/SC
