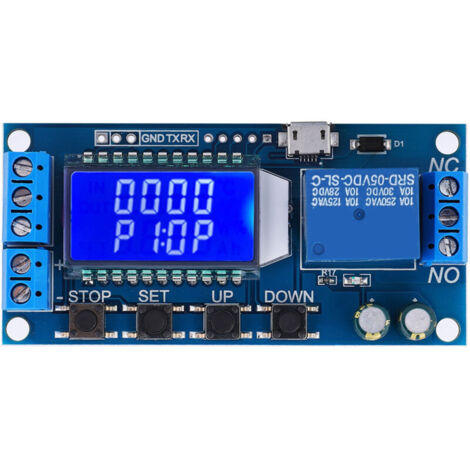

Relay Module, Delay Relay Module, 5V 12V 24V Delay Cycle Timer Module, 0.01s to 9999min with LCD screen

Specifications: Item Type: Delay Relay Module Working Voltage: 6-30V Timing Range: 0.01s-9999min continuously adjustable Trigger Source Design: High-level trigger (3.0V~24V), Low-level trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch) Output Capacity: Can control devices at 30V5A or 220V5A Quiescent Current: 15mA Operating Current: 50mA Lifespan: >100000 cycles Operating Temperature: -40~85°C Size: 88x3.8x1.9cm/3.15x1.5x0.75in How to choose the time range: In the OP/CL parameter modification interface, briefly press the STOP button to select the synchronization range: XXXX: Time range is from 1s to 9999s XXX.X: Time range is from 0.1s to 99.9s XX.XX: Time range is from 0.01s to 99.99s XXXX: Time range is from 1min to 9999min Parameter setting: Parameter description: OP: conduction time, CL: disconnection time, LOP: cycle number (1-9999 times, "----" means infinite loop) a) Enter the setting interface by pressing and holding the SET button; b) First, set the working mode, the flashing/recall working mode, set the working mode by briefly pressing the UP/DOWN button; c) Briefly press the SET button to select the working mode and enter the system settings; d) In the system settings interface, briefly press the SET button to change the system settings to be modified, briefly press/long press the UP/DOWN button to modify; (Note: briefly press SET in P-1~P-3, P-7 mode);

["1. With the LCD display, the current mode and settings are clear at a glance. Add sleep mode; after activation, if no operation is performed within 5 minutes, the LCD backlight will automatically turn off, and all buttons will wake the screen.","2. Supports high/low level trigger control and switching quantity control, suitable for most applications.","3. Wide power supply voltage 6~30V, supports microUSB 5.0V power supply, very convenient to use. Saves Automatically resets all parameter settings in case of power failure.","4. Supports UART data download and parameter setting. Different parameters OP, CL, LOP can be defined; these parameters are independent of each other and saved separately.","5. One-button emergency stop function (STOP button) with reverse connection protection. Industrial-grade printed circuit board with optocoupler isolation to improve anti-interference capability."]
