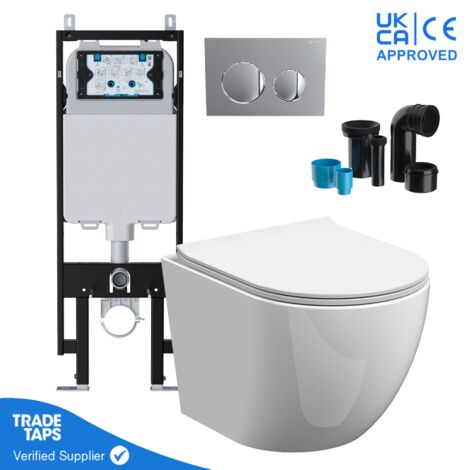

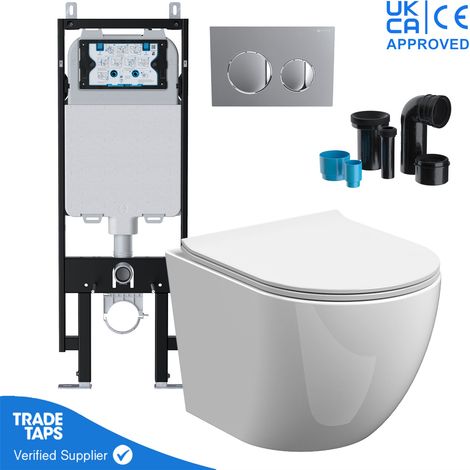

Rimless Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame 1.14-1.35m & Chrome Flush Plate

Product out of stock

Product information

Description

General description

This Rimless Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame is designed for modern bathrooms, combining functionality with a sleek aesthetic. Crafted from high-quality heavyweight ceramic and finished in a luxury gloss white, it features soft chiselled edges and gentle curvature for a contemporary look. The hidden fixation assembly enhances its minimalist appeal, while the included soft-close toilet seat prevents slamming and allows for easy cleaning with its quick-release mechanism.

Technical specifications

Toilet Size: (H) 323mm x (W) 360mm x (D) 482mm

Cistern Frame Size: (H) 1140mm x (W) 400mm x (D) 75mm

Flush Plate Size: (H) 320mm x (W) 350mm x (D) 140mm

Height adjustable from 1140mm to 1350mm

Suitable for depths up to 150mm

Compatibility and accessories

Complete Set or Frame Only options available

Includes angled outlet connector, soil pipe connector, and flush pipe with flush cone

Comes with air gap fill valve and drain & flush pipe cap

All necessary installation fixings pre-supplied

Installation

Wall mounted installation

Height adjustable feet for flexible installation

Quick snap-in fixing bolts for easy setup

Usage

Soft-close seat mechanism for quiet operation

Quick-release seat for easy access and cleaning

Other information

10 Years warranty on the frame, 2 years warranty on the toilet seat

Genuine UK Supplier

Fast Free Delivery + Same Day Dispatch Before 3pm

Features

Brand
GRAVAHAUS
Finishing appearance
Gloss
Colour
White
Material
Ceramic
Toilet accessories included
Toilet seat fittings
Toilet seat features
Soft close
Compatible with soft-close toilet seat
Yes
Bowl sold separately
Yes
Wash function
No
Shape
Rectangular
Seat height
32.3 cm
Height of the bowl
32.3 cm
Lift height
0.323 m
Total height
32.3 cm
Width
36 cm
Integrated hand basin
No
Toilet seat material
Plastic
Bowl material
Ceramic
Supplied flush mechanism pre-assembled
Yes
Toilet and Bidet Set
No
Weight
46.6 kg
Toilet drain position
Vertical
Pcs per pack
1
Shut-off valve included
Yes
Support frame type
Wall
Flange type
Rimless
Type of bowl outlet
Complete
Type of toilet
Wall-hung
Type of flush mechanism
Double flush
Macerating toilet
No
ManoMano Reference
ME85953888
MMID
290939862506
Product code
VIVA#37#NCG340-SKYWHF01-ULTRA10
EAN
5060996138090
