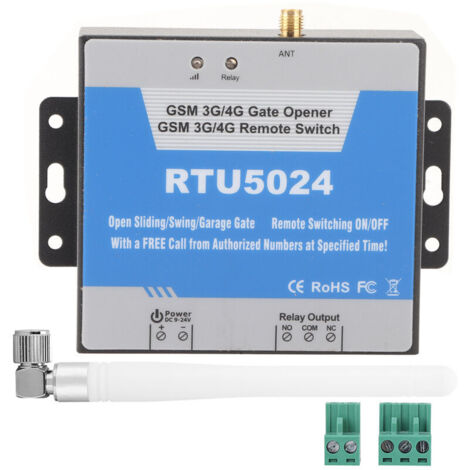

RTU5024 GSM Mobile Phone Access Controller, Remote Control Switch, SMS Door Control
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description
The RTU5024 GSM access controller allows you to manage the opening and closing of doors remotely via a mobile phone. It operates on the global GSM network with a quad-band frequency of 850/900/1800/1900 MHz, with no call charges. This device uses caller ID to secure access, allowing you to ignore unknown callers. Users can be added or removed via SMS, without requiring additional remote controls.Technical Specifications
- Model: RTU5024
- GSM Frequency: 850/900/1800/1900 MHz
- Network Type: 2G
- Digital Output: NC/NO dry contact, 3A/240VAC
- DC Power Supply: 9-15VDC/2A
- Power Consumption: 12V, Maximum Input: 50mA / Average 25mA
- SIM Card: Standard SIM card
- Antenna: 50Ω SMA antenna interface
- Temperature Range: -20 ~ +60°C
- Humidity Range: 90% relative humidity
- Package Size: Approx. 13 x 9.5 x 3 cm / 5.12 x 3.74 x 1.18 inches
Compatibility and Accessories
- Up to 200 authorized phone numbers can be configured.
- Package List: 1 x GSM Mobile Phone Access Controller, 1 x Antenna, 2 x Terminals, 1 x English Manual.
Installation
- Wall mounting bracket.
- Metal housing with IP30 protection rating, suitable for industrial control applications.
Usage
- The relay answers calls from the authorized number and performs an on/off operation on the first ring.
- A text message confirmation is sent to the owner or the authorized caller after the relay operation.
- The relay's opening/closing time is Programmable.
Other information
- The new and old types of this product will be sent randomly.
Features
- BrandTEHTUY
- Width1 cm
- Height1 cm
- Weight1 g
- ColourBlack
