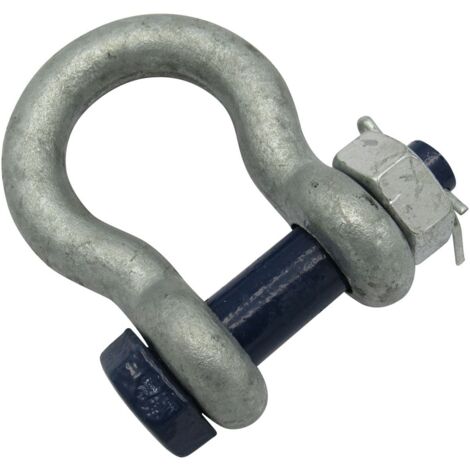

Safety Pin Bow Shackle 120 Ton (Lifting Galvanised Large 120000KG)

Name: Safety Pin Bow Shackle 120 Ton (Lifting Galvanised Large 120000KG)
Brand: SECUREFIX DIRECT
SKU: SFUSSAB120
Price: 585.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

The Safety Pin Bow Shackle 120 Ton is a robust lifting solution designed for heavy-duty applications. With a safe working load (SWL) of 120,000 kg, this shackle is ideal for lifting and towing tasks. Its bow shape allows for a wider lifting point, making it versatile for various lifting angles, including inline and up to 45 degrees. The shackle features a blue painted safety pin that prevents slipping, ensuring added security during use.

Technical specifications

Product Code: SFUSSAB120

Product Weight: 111 kg

SWL: 120 Ton

Body Finish: Hot Dipped Galvanised

Safety Factor: 5:1

Dimensions:

A (MM): 102

B (MM): 95

C (MM): 126.5

D (MM): 207

E (MM): 375

F (MM): 227.5

G (MM): 113.75

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

Test Certificate Supplied (Sent Via Email)

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Steel
Maximum load
80 kg
Pcs per pack
1
