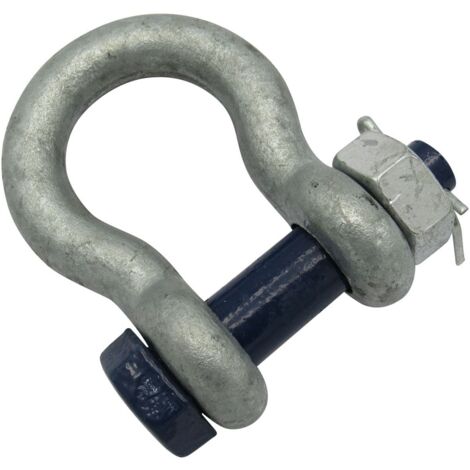

Safety Pin Bow Shackle - 17 Ton Galvanised 42MM 17000KG Omega

Sold by SecureFix Direct

You may also like

8mm STAINLESS STEEL 316 (A4) Long D shackle

8mm STAINLESS STEEL 316 (A4) Long D shackle

1
10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle

12mm STAINLESS STEEL 316 (A4) D shackle

1
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free delivery
Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)

Free delivery
Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)SECUREFIX DIRECT

Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)

Free delivery
X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting Towing

Free delivery
Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free delivery
Stainless Steel Rigging Screw with Terminal Each End M16 (8MM Wire Cable Railing Balustrade)SECUREFIX DIRECT

Stainless Steel Rigging Screw with Terminal Each End M16 (8MM Wire Cable Railing Balustrade)

Free delivery
Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double RotatingSECUREFIX DIRECT
#1 in sales

Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double Rotating

1
Free delivery
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free delivery
Eye to Eye Turnbuckle Stainless Steel M20 (30MM Eyes Open Body Straining Screw Rigging Tensioner)SECUREFIX DIRECT

Eye to Eye Turnbuckle Stainless Steel M20 (30MM Eyes Open Body Straining Screw Rigging Tensioner)

Free delivery
6 Ton Self Colour Large Dee Shackle With Screw Pin - 6000KG D High Tensile Lifting TowingSECUREFIX DIRECT

6 Ton Self Colour Large Dee Shackle With Screw Pin - 6000KG D High Tensile Lifting Towing

Free delivery
7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing TestedSECUREFIX DIRECT

7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing Tested

Free delivery
17 Ton Dee Shackle with Screw Pin - Lifting 17000KG 1.1/2" X 1.5/8"SECUREFIX DIRECT

17 Ton Dee Shackle with Screw Pin - Lifting 17000KG 1.1/2" X 1.5/8"

Free delivery
Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)SECUREFIX DIRECT

Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)

Free delivery
Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)SECUREFIX DIRECT

Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)

Free delivery

Compare with similar items

Product information

Description

General description

Our Safety Pin Bow Shackle is designed for heavy-duty applications, with a safe working load (SWL) of 17 tons (17000 kg). This bow shackle features a hot-dipped galvanised finish, providing excellent resistance to rust and ensuring durability over time. The shackle is fitted with a blue painted safety pin that prevents slipping, enhancing security during use. Ideal for lifting and towing, the bow shape allows for a wider lifting point compared to a Dee shackle, making it versatile for various applications.

Technical specifications

  • Product Code: SFUSSAB17
  • Product Weight: 8.54 kg
  • SWL: 17 tons (17000 kg)
  • Body Finish: Hot Dipped Galvanised
  • Dimensions:
  • A (MM): 39
  • B (MM): 42
  • C (MM): 64
  • D (MM): 92
  • E (MM): 149.5
  • F (MM): 97
  • G (MM): 48.5

    • Other information

  • Conforms to: BS EN 13889: 2003 + A1: 2008
  • US Federal Specification RR-C-27IDIV
  • Test Certificate Supplied (Sent Via Email)

  • Features

    • Brand
      SECUREFIX DIRECT
    • Material
      Steel
    • Maximum load
      80 kg
    • Pcs per pack
      1
    • Warranty
      1 year(s)
