General description

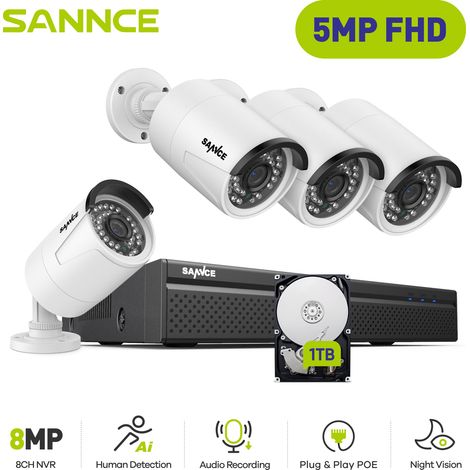

The SANNCE 5MP H.264+ PoE NVR Surveillance Kit is a comprehensive security solution featuring an 8-channel NVR and 4 high-definition CCTV cameras. Designed for both indoor and outdoor use, this system offers exceptional 5MP resolution, ensuring clear and detailed video footage day and night. With its robust IP66 waterproof rating, the cameras are built to withstand various weather conditions, making them ideal for outdoor surveillance.Technical specifications
- Video Compression: H.265+
- Max Recording Resolution: Up to 8M (3860x2160)
- Max Playback Resolution: Up to 8M (3860x2160)
- Max Playback Channel: 4CH
- Max Playback Capacity: 4CH 3MP/2CH 5MP/1CH 8MP
- HDD Capacity: Up to 12TB
- Operating Power: DC48V
- Power Consumption: 10W (without HDD)
- Working Temperature: 32 °F – 131 °F / 0 °C – 55 °C
- Dimensions (W x H x D): 10.2” x 9.6” x 1.9” / 260 x 245 x 47 mm
- Weight (without hard disk): 1.68 lbs / 760 g
- Camera Video Resolution: 5MP (2880x1616)
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Lens: 3.6mm
- Angle of View: 70°
- Night Vision Distance: Up to 100 ft / 30 m
- Dimensions (L x W x H): 6.7” x 2.6” x 2.6” / 170 x 65 x 65 mm
- Weight: 0.772 lbs / 350 g
Compatibility and accessories
- Supports IP cameras that utilize H.265+/H.265/H.264+/H.264 encoding formats.
- Includes 4 IPC POE cameras with 5MP resolution.
Installation
- Plug & Play PoE connection allows easy setup by connecting the camera to the NVR using network cables for power, video, and internet connection.
Usage
- Remote access via the free SANNCE app and client, allowing users to monitor the system from smartphones, tablets, or computers.
- Live streaming and recording of both video and audio through the integrated microphone.
- Smart alerts via email and app notifications when motion is detected or video loss occurs.
