Product information

Description

General description

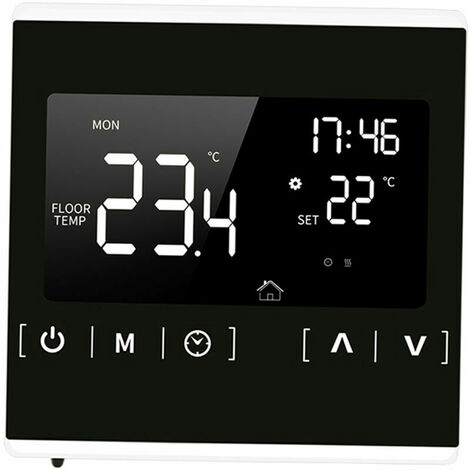

This digital floor heating thermostat utilizes an advanced microcomputer chip and a high-precision sensor to effectively control the temperature of electric heaters. It is primarily designed for underfloor heating systems and can control various devices such as motorized ball valves, thermal valves, solenoid valves, and electric heating films.

Technical specifications

Color: Black / White (optional)

Material: Flame retardant PC + ABS

Input frequency: 60Hz

Input voltage: AC 85-250V

Temperature sensor: NTC thermometer

Temperature control accuracy: ± 1°C

Energy consumption: < 1W

Charging current: 16A

Temperature setting range: 5 to 50°C

Temperature measuring range: -9°C to 99°C

Display: LCD screen (71 * 40mm)

Installation hole spacing: 60mm

Suitable wire box size: 86 * 86mm

Device size: 86 * 86 * 45mm (3.4 * 3.4 * 1.77 inches)

Item Weight: Approx. 135g (4.8oz)

Package Size: Approx. 10.4 * 10 * 8cm (4.1 * 3.9 * 3.1in)

Package Weight: Approx. 277g (9.8oz)

Installation

To install the thermostat, prepare a junction box on the wall with a suitable size of 86 * 86mm and an installation distance of 60mm.

Usage

This thermostat features a touch screen for easy operation and can be programmed according to your schedule to help reduce electricity bills. It offers flexible programmable periods of either 5-2 days or 6-1 days. The device includes a low-temperature anti-freeze function that activates below 5°C and overheating protection that starts above 7°C to safeguard the floor. It also has a keypad lock function to prevent misuse by children and a power failure memory function to protect your settings during outages.

Other information

Packing list: 1 * floor heating thermostat, 1 * 3 meters external sensor cable, 2 * mounting screws, 1 * User manual (English and Russian)

Features

Brand
HOOPZI
NF certification
NF277
Power source
Corded
Integrated temperature sensor
Yes
Smart
Yes
Colour
Black
Amperage
16 A
Width
86 mm
Material
Plastic
Weight
135 g
Programmable
Yes
Compatible equipment type
Underfloor heating
Thermostat type
Programmable
ManoMano Reference
ME85863069
MMID
213454679907
Product code
DL-CH02428
EAN
9480824628559

Security, Boiler Thermostat and Thermistor LCD Touch Screen Smart Thermostat for Electric Floor Heating System Home Programmable Thermoregulator AC 85-250V Control
