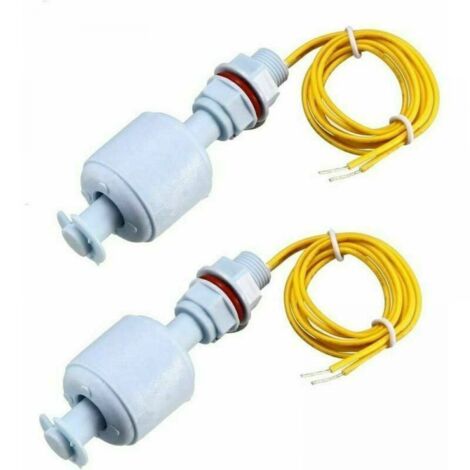

Set of 2 PP float switches with cable, designed for use as level switches in pump tanks.

~~£19.27~~

Of which environmental contribution £0.10 including VAT.

Sold by A10 ROOFING (LONDON) LIMITED

Product information

Description

General description

The float switch is an essential device for controlling the water level in various systems. It uses a magnet to detect the position of the liquid, based on a magnetic spring switch and a float. The float contains magnetic materials that respond to changes in water level.

Technical specifications

Total Length: 67 mm / 2.6 inches

Float Ball Size: 24 x 23 mm / 0.94 x 0.91 inches (L x D)

Thread Diameter: 10 mm / 0.39 inches

Cable Length: 40 cm / 15.7 inches

Maximum Switching Voltage: 110 V DC / 0.5 A

Maximum Power: 10 W (low pressure), 50 W (high pressure)

Temperature range: -20°C to +60°C (low pressure), -50°C to +90°C (high pressure)

End-of-stroke voltage: 110 VDC (low pressure), 220 VDC (high pressure)

Maximum load current: 0.5 A (low pressure), 1 A (high pressure)

Compatibility and accessories

This device is compatible with various water heating equipment such as:

Water dispensers

Water heaters

Humidifiers

Water towers

Drainage pools

Tanks water

Culture ponds

Installation

Installing the float switch requires placing it in the desired tank or water system, ensuring that the float can move freely with the water level. Be sure to follow the electrical specifications when connecting.

Usage

The float switch is used to detect the water level and activate or deactivate devices depending on the position of the liquid. It is recommended to use a relay or contactor for higher loads, as the switch can only carry a very low current (0.5A).

Other information

Please note that the relay or contactor is not included with the switch.

Features

Brand
CYSLMUK
Weight
100 g
Material
Plastic
Colour
Blue
Maximum operating temperature
60 °C
