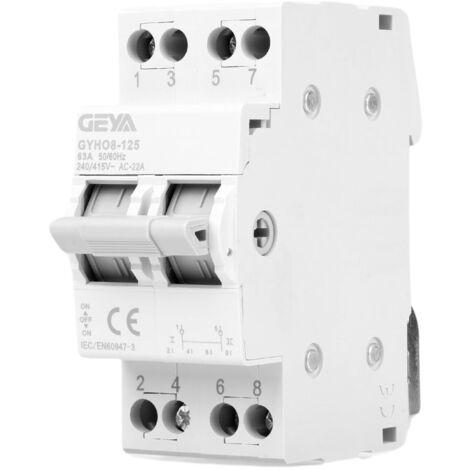

Single-phase 2P 63A dual power transfer switch AC 240V small manual transfer switch disconnect switch DIN rail mounting 35mm

Product information

Description

【Protection Function】: This transfer switch is used to switch two circuits to ensure stable power supply, with overload and short-circuit protection.
【Flame-Retardant Material】: The transfer switch is made of a flame-retardant ABS shell, which offers good insulation and high-temperature resistance, and the silver alloy contacts ensure good conductivity.
【Instruction Panel】: The switch features a user-friendly design, is simple and convenient to operate, and is equipped with clear identification images for easy manual switching.
【Rail Mounting】: The automatic transfer switch has a compact structure and can be mounted on a 35mm DIN rail, making it easy to use.
【Application Scenarios】: This manual transfer switch is suitable for commercial, residential, RV, or other dual-power systems and constitutes A reliable energy management solution.

Parameters:

Material: Flame-retardant ABS

Rated Voltage: 240VAC

Current: 63A

Rated Frequency: 50/60Hz

Number of Poles: 2P

Electrical Life: >1500 cycles

Mechanical Life: >8500 cycles

Protection Level: IP20

Ambient Temperature: -5℃-40℃

Installation: 35mm DIN rail

Package includes:

1*Manual Transfer Switch

Features

Brand
COOCHEER
IP rating
IP20
Material
Acrylonitrile butadiene styrene (ABS)
Number of positions
2
Switch type
Modular switch
ManoMano Reference
ME102646951
MMID
950369101226
Product code
HD129C-260328388
