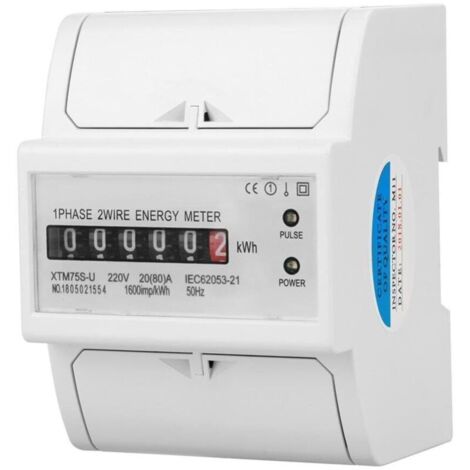

Single-phase digital 2-wire 4P DIN rail - 220V Single-phase digital 2-wire 4P DIN rail electricity meter kWh electronic meter (20(80) A)
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Features:
Standard 35 mm DIN rail mounting, compliant with DIN EN50022. Six-pole width (12.5 mm module), compliant with JB/T7121-1993. Can select 5+1 LCD digit display (99999.1 kWh). Standard configuration: one passive pulse output port (polarity). Can select: one additional passive pulse output port (non-polarity), compliant with IEC 62053-31. The standard configuration does not detect the direction of load current flow. Can select: automatic detection of load current flow direction. Individual LED indicators are provided. Measures single-phase, two-wire active energy consumption. It is independent of the load current flow direction. Compliant with IEC 62053-21. Standard configuration short terminal cover; extension terminal cover can be selected for safe operation.
Specifications:
Model: XTM75S-U
Accuracy: Class 1
Voltage: 220V
Current: 5 (30) A, 15 (60) A, 20 (80) A (Optional)
Insulation Performance: AC voltage 4kV for 1 minute, pulse voltage 1.2/50µs waveform 6kV
Size: 10 x 7.6 cm / 3.94 x 2.99 inches
Weight: Approx. 270-277g
Package includes:
1 x DIN rail electric meter
1 x manual
Features
- BrandTEHTUY
- Amperage1 A
- Warranty1 year(s)
- Certification bodyDIN
- Availability of spare parts1 year(s)
- Control functionNo
- Height1 cm
- Width1 cm
- MaterialCross-linked Polyethylene
- Type of electrical installationDIN rail
- Number of modules1
- Number of phase(s)Single-phase
- Number of outlets1
- Weight270 g
- Power1 W
- Voltage1 V
- Meter typeElectricity
- ManoMano ReferenceME99086750
- MMID534609507196
- Product codeZJL-mano-09714
- EAN6282768170667
