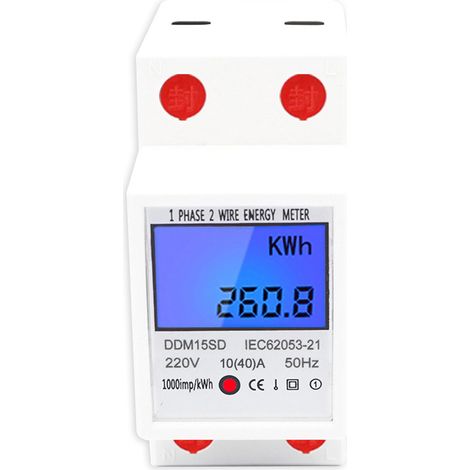

Single-phase electric sub-meter, single tariff, LCD display, white, AC220V 10(40)A

~~£37.57~~

Of which environmental contribution £0.10 including VAT.

Amperage: 10 A

10 A

15 A

Sold by A10 ROOFING (LONDON) LIMITED

Product information

Description

General description

The Single-phase electric sub-meter is designed for accurate measurement of electrical energy consumption. It features a backlit LCD digital display that cycles through power consumption, voltage, current, and power readings, making it user-friendly and efficient.

Technical specifications

Model: DDM15SD

Material: ABS

Accuracy: First-class

Reference voltage: 220V/50Hz

Current: 10-40A

Power: 17000W

Display: Backlit digital LCD screen

Installation: 35mm DIN rail

Bar width: 17.5mm

Wiring method: Top-out and bottom-in/top-in and bottom-out

Ambient temperature: -20°C to +50°C

Pulse output: 1000imp/kWh

Pulse output indicator: Yes

Installation

Mounting type: 35mm DIN rail

Shaft width: 17.5mm

Wiring method: Top-out and bottom-in/top-in and bottom-out

Easy to install

Usage

Measures electrical energy consumption accurately

Displays power consumption, voltage, current, and power in sequence

Other information

Packaging includes: Electricity meter*1 in carton packaging

Features

Brand
CYSLMUK
Amperage
10 A
Warranty
1 year(s)
Photovoltaic / renewable production compatibility
No
Availability of spare parts
3 year(s)
Control function
No
Frequency
50 Hertz
Width
1.75 cm
Material
Acrylonitrile butadiene styrene (ABS)
Type of electrical installation
DIN rail
Number of modules
1
Number of analog inputs/outputs
1
Number of phase(s)
Single-phase
Number of outlets
1
Number of area(s)
1
Weight
100 g
Power
1 W
Voltage
220 V
Meter type
Electricity
ManoMano Reference
ME91791721
MMID
212786747966
Product code
PB-009456ZY
EAN
9010050277025
