General description

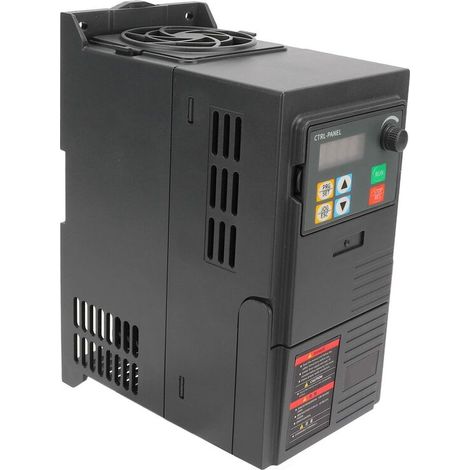

The Single-phase input, three-phase output, frequency converter is designed for high performance with features that ensure efficient motor control. It is suitable for various applications requiring precise speed and direction adjustments.Technical specifications
- Condition: 100% Brand New
- Model: AT4-2200X
- Application: Universal
- Number of Power Phases: Single Phase
- Input Method: Single Phase Input 220V AC
- Output Mode: Three Phase Output 380V AC
- Power Supply Voltage: 220V AC 50/60Hz
- Suitable Motor Power: 2.2KW
- Rated current: 12 A
- Maximum output frequency: 400 Hz
- Dimensions: approx. (W x H x D) 125 x 180 x 125 mm
Compatibility and accessories
- This product is suitable for three-phase motors with a voltage of 380 V.
Installation
- Includes 1 x Frequency converter
- 1 x Instruction manual (English)
Usage
- Controls the start, stop, speed adjustment, and rotation direction (clockwise/counterclockwise) of the motor.
- Utilizes PWM output voltage regulation for excellent performance.
