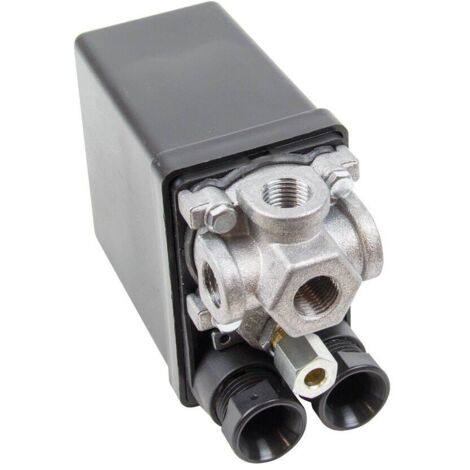

SIP 1/4" 4-Way Pressure Switch - L5 x W8 x H12.5 cm

~~£43.34~~

Product information

Description

The SIP 1/4" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This easy-to-install switch offers 3x 1/4" BSP ports and adjustable cut-off pressure.

Features:

1/4" 4-way pressure switch with 3x 1/4" BSP ports
Easily adjustable cut-off pressure via built-in switch
Designed to start and stop electric compressor motors
Manufactured for long-lasting and reliable use
Integrated bleed facility with 6mm pipe entry

Technical Data:

Switch Type: Mignon 4-Way
Voltage / Current: 230v / 16A
Overload: N/A
Inlet Connection Size: 1/4" BSP
Inlet Connection Type Bottom Entry
Side Port Size: 3x 1/4" BSP
Switch Type: Pull
Phase Type: 1-phase
No. of Poles: 2 poles

Dimensions & Weight:

Dimensions: L5 x W8 x H12.5 cm
Weight: 1 kg

SIP 1/4" 4-Way Pressure Switch

. Delivery is FREE to the UK Mainland and Northern Ireland.. 2#3

Features

Brand
SIP
Pcs per pack
1
Warranty
1 year(s)
Height
125 mm
Width
80 mm
