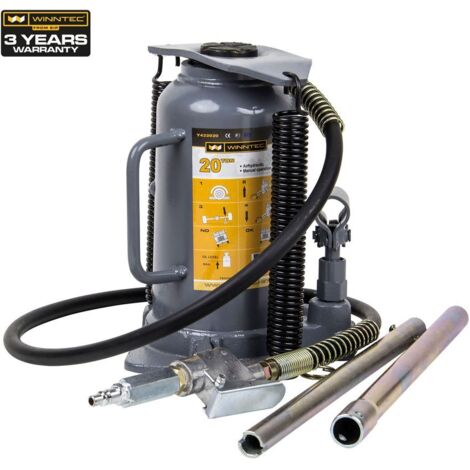

WINNTEC WINNTEC 20 TON Air Bottle Jack

The WINNTEC® from SIP 20 TON Air Bottle Jack utilises a combination of heavy-duty components and air-assisted lifting to provide powerful performance in automotive and commercial applications, offering safe support of large and heavy vehicles.

Designed for horizontal and vertical operation, this bottle jack is extremely versatile.

Features:

• 20 TON maximum weight capacity
• 245mm to 475mm lifting height range
• 80mm screw extension for improved lifting versatility
• Heavy-duty welded wide base helps spread weight evenly
• Designed for both horizontal and vertical operation
• Heavy-duty aluminium air motor for rugged performance
• Heat-treated cylinder wall for added durability
• Durable polished ram and chromed pump pistons
• Integrated overload protection for safety
• Air filters help prevent contamination
• Quality European design for performance
• WINNTEC® from SIP 3-Year Warranty

Technical Data:

• Weight Capacity: 20 TON
• Min. Lifting Height: 245mm
• Max. Lifting Height: 475mm
• Screw Extension: 80mm
• Air Consumption: 5CFM (140ltr/min)

Dimensions & Weight:

• Dimensions: L32 x W24.5 x H30 cm
• Weight: 17.5 kg

WINNTEC® 20 TON Air Bottle Jack
