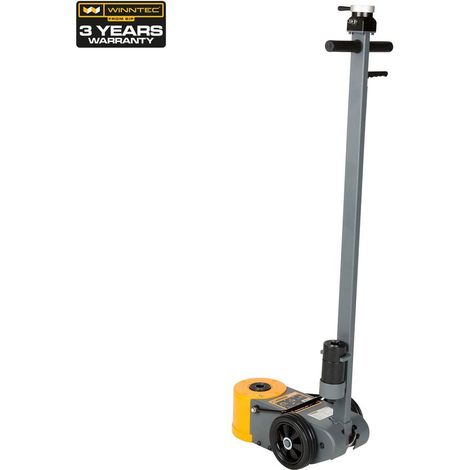

WINNTEC WINNTEC 32/16 TON Air Service Jack

The WINNTEC® from SIP 32/16 TON Air Service Jack offers powerful lifting and high performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 289mm.

Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.

Features:

• 32/16 TON maximum weight capacity
• 150mm to 289mm lifting height range
• Dual-stage telescopic hydraulic lifting system for ease-of-use
• Easily ascension and descension with air for user protection
• Supplied with 2 versatile extensions,: 45mm and 100mm
• Wheel-mounted design with long handle for simple positioning
• Built-in dead mans controls for reliable user safety
• Heavy-duty hard chromed piston and main ram
• Optional 260mm extension sold separately
• Quality European design for performance
• WINNTEC® from SIP 3-Year Warranty

Technical Data:

• Weight Capacity: 32 / 16 TON
• Min. Lifting Height: 150mm
• Max. Lifting Height: 289mm
• Screw Extension: Optional
• Supplied Extensions: 45mm / 100mm
• Air Consumption: 10.6CFM (300ltr/min)
• No. of Stages: 2 stages
• Handle Length: 1300mm
• Jack Length: 480mm
• Jack Width: 290mm
• Base Height: 150mm

Dimensions & Weight:

• Dimensions: L58 x W191 x H30 cm
• Weight: 35.39 kg

WINNTEC® 32/16 TON Air Service Jack
