SJLERST Electric Pressure Switch Water Pump, 40-60 PSI Adjustable Spring Post Double Self-Priming Garden Injection
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
General Description

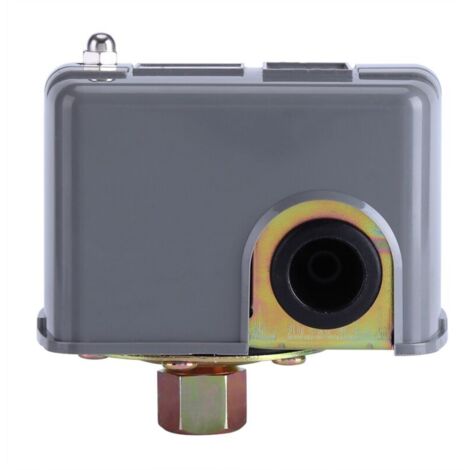

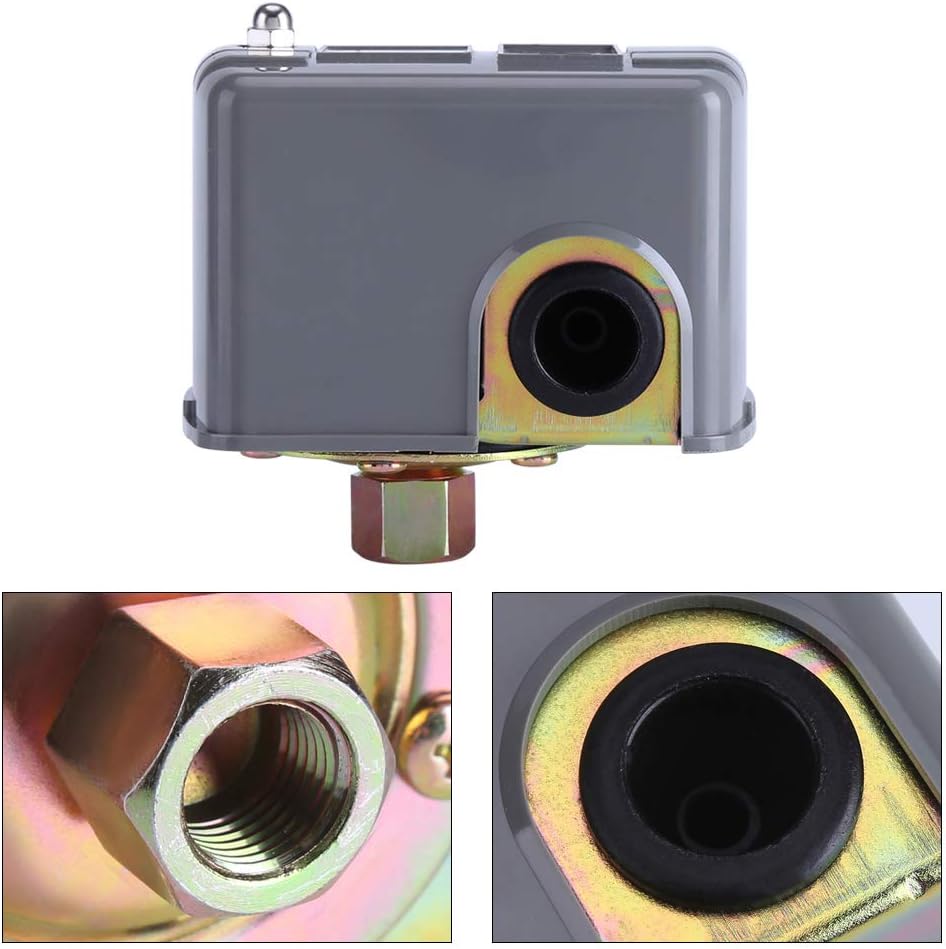

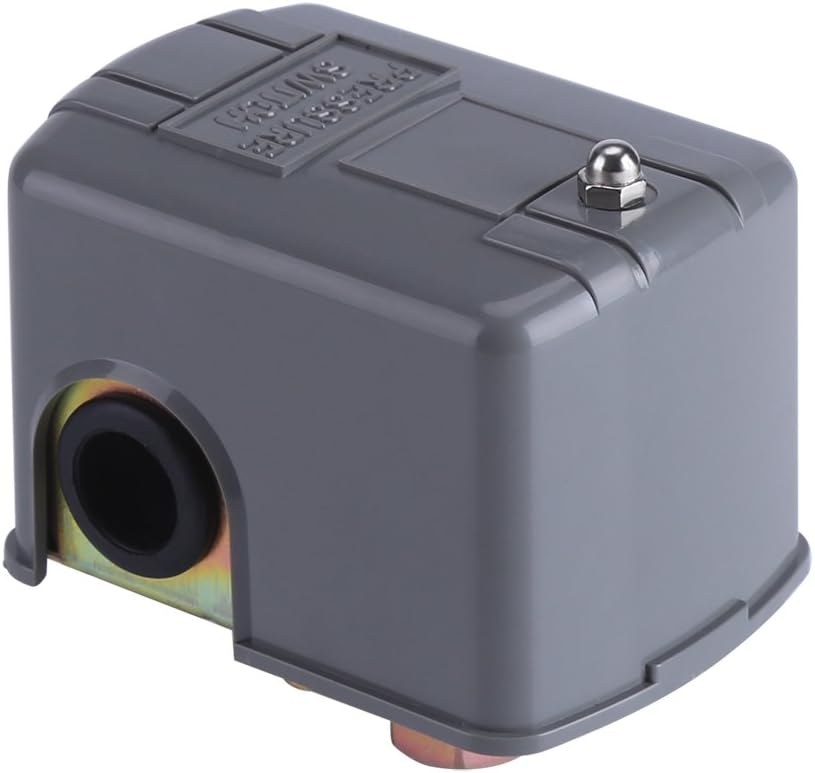

This electric pressure switch for water pumps is designed with high-quality materials, offering strong resistance and long durability. It allows for automatic pump control, activating when the pressure is below the set threshold and stopping when the pressure exceeds this threshold. This device is widely used and easy to install, suitable for most water pumps, including self-priming and garden pumps.Technical Specifications
- Material: Metal, Plastic
- Color: As shown in the picture
- Rated Voltage: 110V/230V
- Max. Current: 12 A/6 A
- Pressure range: 0.8-5.0 bar
- Pressure clearance: 0.8-1.6 bar
- Connector thread: ZG1/4
- Protection rating: IP20
- Operating temperature: 0-55℃
- Package weight: approx. 346 g
Compatibility and accessories
- Pressure inlet: 1/4F
- Suitable for most water pumps, including self-priming and injection pumps
Installation
To install the pressure switch, remove the unused nut and ring, screw the fitting into the pressure switch, and then screw the pressure switch onto the pump. Ensure that no part of the pump obstructs its rotation. If necessary, obtain an adapter for proper adjustment.Operation
The pressure switch automatically activates the pump when the pressure falls below the set threshold and stops it when the pressure exceeds this threshold. The pressure can be adjusted as needed.Other Information
Features
- BrandXISRENS
- MaterialMetal
- IP ratingIP20
- Warranty1 year(s)
- ManoMano ReferenceME99351816
