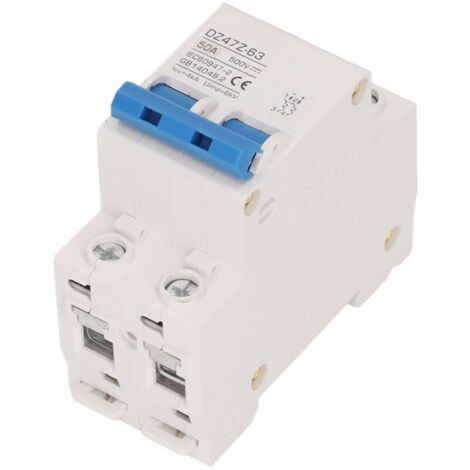

Small Circuit Breaker, Modular Structure 2P Mini Circuit Breaker DC DC500V for Photovoltaic Solar System (50A)

Arc Extinction System: Arc extinguishing in direct current (DC) is usually more difficult than in alternating current (AC). However, our DC circuit breaker has a magnetic system to assist in arc extinguishing.
Wide Application Scenario: The miniature 2P circuit breaker is used for DC power systems, marine power systems, photovoltaic solar systems, or other DC systems.
Fast Tripping: The electromagnetic tripping system of this circuit breaker can trip immediately when the circuit is short-circuited to ensure circuit safety.
Function Description: Our 2P circuit breaker is used to protect power distribution installations against overloads and short circuits, as well as for control and isolation. Rated voltage DC500V, and the Icu is 4kA and the Uimp is 6kV.
DIN rail installation: This miniature circuit breaker has a modular structure, a screw clamp wire and can be installed on a 35 mm (1.4 in) DIN rail.

2P Solar PV System Circuit Breaker Small Circuit Breaker Mini DC Circuit Breaker 4kA Icu Mini DC Circuit Breaker 2P

Feature:
1. Function Description: Our 2P circuit breaker is used to protect power distribution installations against overloads and short circuits, as well as for control and isolation. Rated voltage DC500V, and the Icu is 4kA and the Uimp is 6kV.
2. Rapid tripping: The electromagnetic tripping system of this circuit breaker can trip immediately when the circuit is short-circuited to ensure circuit safety.
3. Arc extinguishing system: Usually, arc extinguishing in direct current is more difficult than in alternating current. However, our DC circuit breaker has a magnetic system to assist in arc extinguishing.
4. DIN rail mounting: This miniature circuit breaker has a modular structure, a screw clamp wire, and can be installed on a 35 mm (1.4 inch) DIN rail.
5. Wide range of applications: The 2P miniature circuit breaker is used for DC power systems, marine power systems, solar photovoltaic systems, or other DC systems.

Specification:
Item Type: DC Circuit Breaker
Model: DZ47Z 63
Material: PA66
Rated Voltage: DC500V
Icu: 4kA
Uimp: 6kV
Application: Special for solar photovoltaic systems, electric motorcycles, and special electric vehicles.
Mechanical Lifespan: 20,000 cycles
Applicable Temperature: -35°C to +70°C

Instructions for Use:
1. Open the package and remove the product.
2. Install the circuit breaker in the distribution box.
3. Connect the wires to the circuit breaker.

Package List:
1 x Circuit Breaker
