Smart Home 433MHz DC 12V 1CH Wireless Remote Control Relay Receiver Transmitter Universal Remote Control Switch Module and RF Transmitter Remote Controls
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description

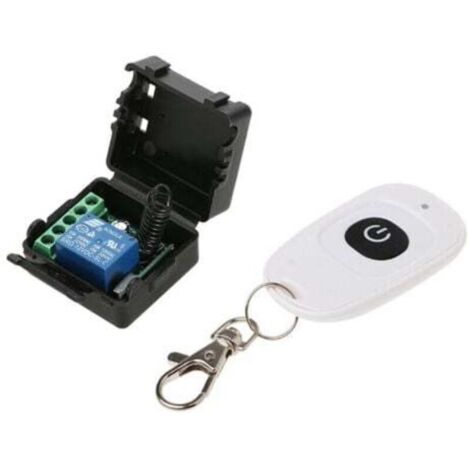

This 433MHz DC 12V wireless remote control module is designed to control various electronic devices such as locks, lights, and curtains. It allows for easy pairing, meaning it can work with any remote control of the same frequency, providing a convenient solution if the original remote is lost.Technical Specifications
- Input Power: DC 10V-14V
- Standby Current: < 5mA
- RF Frequency: 433MHz
- RF Operating Mode: Superheterodyne Reception
- Reception Sensitivity: -108dBm
- Transmission Distance: 100m (open area)
- Decoding Mode: MCU Software Decoding
- Remote Control Storage: Up to 19 pieces
- Wiring Type: Fixed Terminal
- Output Terminal: NO, NC, COM
- Remote Control Battery: 1x12V 23A (included)
- Supported Remote Control Type: Learning Code (1527 Chip), Fixed Code
- Package Size: Approx. 10x7x3 cm
- Package Weight: Approx. 45g
Compatibility and Accessories
- Supports up to 19 remote controls
- Compatible with various electronic devices (locks, lights, curtains)
- Package list: 1 x receiver board, 1 x fuse box, 1 x remote control
Installation
The module is designed for easy installation thanks to an easy-to-follow wiring diagram.Use
This module allows you to remotely unlock doors, turn off lights, or open/close curtains as needed. The operating mode can be changed to momentary, toggle, or latching mode.Features
- BrandTEHTUY
- Length1 cm
- Width1 cm
- Height1 cm
- Voltage12 V
