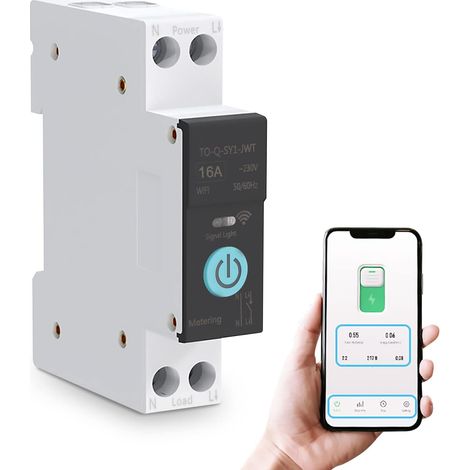

Smart Wi-Fi switch, home fuses, remote control via mobile phone, 3 synchronization modes for household appliances, 16 A

Remote monitoring of device operating status: Set the on/off status of devices in various scenarios and monitor the real-time status of the electrical load.
Smart Home: Monitor the usage of all household appliances and control and program them remotely to make your life smarter.
3 Synchronization Modes: Synchronization mode/Countdown mode/Cycle synchronization. Set the time the air conditioner turns on when you leave work or control other devices.
High-quality material: Copper offers good electrical conductivity, PA66 is flame-retardant and high-temperature resistant, thus increasing operational safety.
Safe to use: Colored indicator lights show the operating status at a glance. Intelligent protection, easy operation, reliable, with short-circuit protection, overload protection, etc.

Application:
Description of indicator lights:
1. The LED indicator glows solid blue, indicating that the switch is on.
2. The LED indicator is off, meaning the switch is off or in offline mode. (In offline mode, the manual switch has no status indicator; please observe operational safety guidelines.)
3. The LED indicator flashes blue slowly, indicating that the product is in pairing mode.
Steps:
1. Connect the cable from the top of the circuit breaker to the bottom. Ensure the wiring is correct and the Wi-Fi signal is strong.
2. Enable Bluetooth and Wi-Fi on your smartphone, open the app, and press and hold the power button. Wait approximately 5 to 10 seconds; the LED indicator will flash blue slowly.
3. After a short wait, a pop-up window will appear. Tap the plus sign (+) in the upper right corner, then select "Add device" and wait until the device is detected.
4. Enter your Wi-Fi password and tap "Next". Wait until the network connection is established.
5. Connect to the network.

Specification:
Item type: DIN rail circuit breaker.
Material: Copper, PA66
Application: Smart home control
Panel color: Black
Application area: For smart elevators.
Rated operating voltage: AC 230 V.
Control type: Remote control, manual
Number of poles: 1P+N (N-pole switched through)
Control method: For SigMesh/For ZigBee
Rail: DIN35
Size: Approx. 82 x 68 x 18 mm

Scope of delivery:
1 DIN rail circuit breaker.
