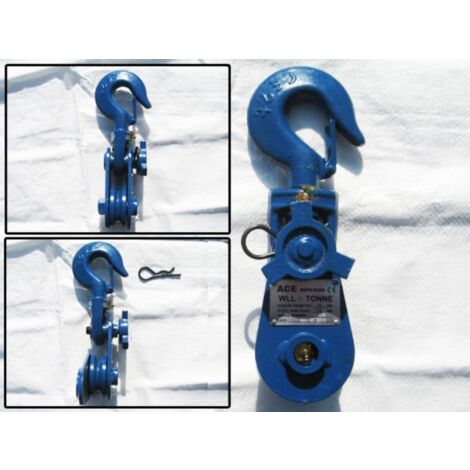

Snatch Block Swivel Hook 22T 14" (Lifting Pulley 22 Ton 14 Inch Lightweight)

You may also like

Electric Winch 12 V 13000 lbs vidaXLVIDAXL

Electric Winch 12 V 13000 lbs vidaXL

144
Free delivery
Hand Winch 360 kg vidaXLVIDAXL
4 options

Hand Winch 360 kg vidaXL

526
Free delivery
Hand Winch 540 kg vidaXLVIDAXL
4 options

Hand Winch 540 kg vidaXL

526
Free delivery
Hand Winch 1130 kg vidaXLVIDAXL
4 options

Hand Winch 1130 kg vidaXL

526
Free delivery
Snatch Block Steel 10 Tons vidaXLVIDAXL
2 options

Snatch Block Steel 10 Tons vidaXL

27
Free delivery
Hand Winch with Strap 360 kg vidaXLVIDAXL
4 options

Hand Winch with Strap 360 kg vidaXL

180
Free delivery
Hand Winch with Strap 540 kg vidaXLVIDAXL
4 options

Hand Winch with Strap 540 kg vidaXL

180
Free delivery
Hand Winch with Strap 1130 kg vidaXLVIDAXL
4 options

Hand Winch with Strap 1130 kg vidaXL

180
Free delivery
Hand Winch with Strap 1587 kg vidaXLVIDAXL
4 options

Hand Winch with Strap 1587 kg vidaXL

180
Free delivery
Hand Winch 1360 kg vidaXLVIDAXL
4 options

Hand Winch 1360 kg vidaXL

526
Free delivery

Compare with similar items

Product information

Description

General description

Lightweight Heavy Duty Snatch Block Swivel Hook designed for lifting, pulling, towing, and redirecting applications. This snatch block features a swivel safety hook and is suitable for use with wire rope, allowing easy passage of the wire without threading.

Technical specifications

  • Head Load: 22 Tonnes
  • Sheave Diameter: 14 Inch (357MM)
  • Compatible Wire Diameter: 28-32MM
  • Overall Height: 960MM
  • Side Width: 140MM
  • Front Width: 365MM
  • Weight: 91KGS
  • Factor of Safety: 4:1
  • Conforms to: BS EN 13157: 2004 + A1: 2009
  • Fitted with a roller bearing sheave for high-speed applications
  • Other information

  • Test Certificate included (sent via email)
  • Features

    • Brand
      SECUREFIX DIRECT
    • Material
      Two-material
    • Maximum load
      80 kg
    • Warranty
      1 year(s)
    • ManoMano Reference
      ME27141374
